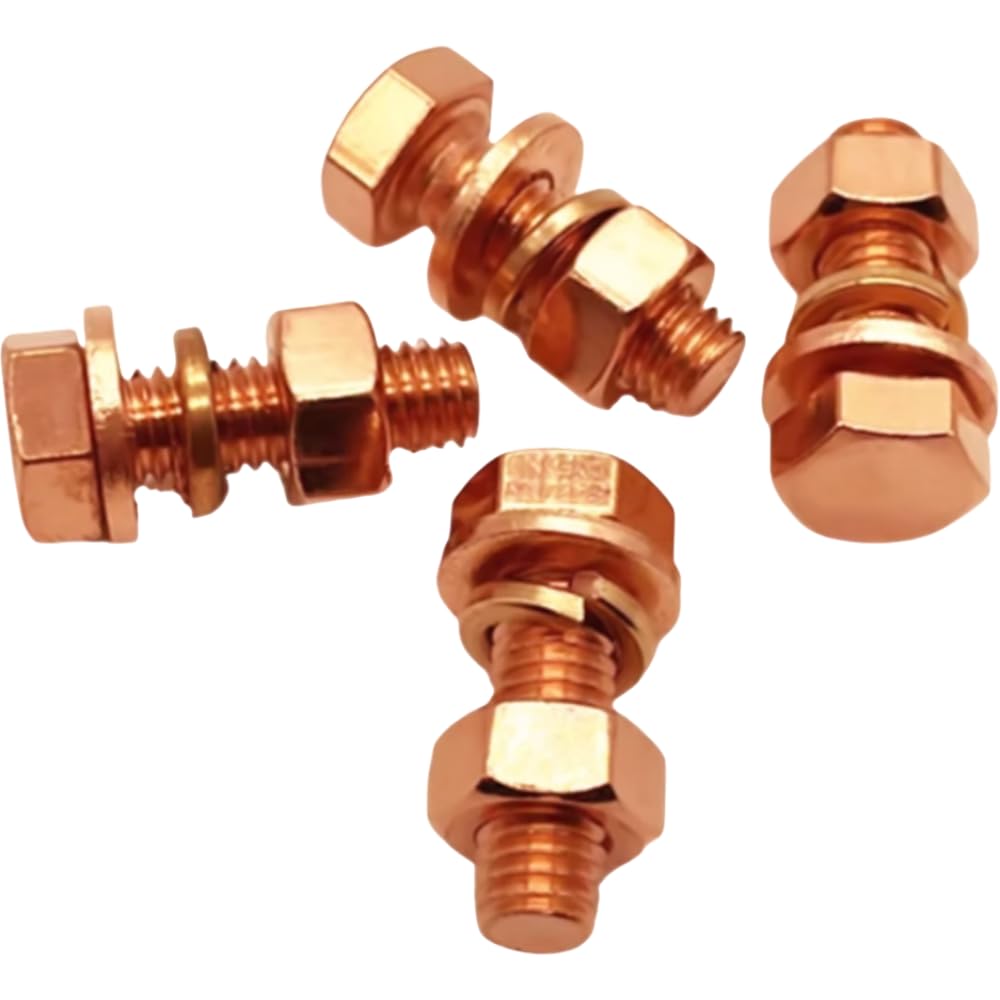

M3-M16 T2 Pure Copper Hexagonal Screw Bolt, nut Washer, Conductive red Copper Conductive Bolt (16mm, M4 4sets)
5 sold in last 24 hours
- 1. Material: T2 Red copper
- 2. Size: mm. Please refer to the attached figure for detailed dimensions of the product
- M3 head thickness 2.2-1.9 hexagonal opposite side 5.5-5.25
- M4 head thickness 3.0-2.8 hexagonal opposite side 7.0-6.65
- M5 head thickness 3.74-3.26 hexagonal opposite side 8.0-7.85
- M6 head thickness 4.24-3.76 hexagonal across flats 10.0-9.65
- M8 head thickness 5.54-5.26 hexagonal opposite side 13.0-12.77
Tags |
Estimated shipping
Select a product to estimate shipping.1. Standard hexagonal, easy to use, increases work efficiency.
2. Deep thread, uniform pitch, stable force, and good tightening force.
3. The surface is flat and smooth without burrs, with high-quality workmanship and quality assurance.
Product Dimensions
0.79 x 0.24 x 0.31 inches; 1.76 ounces
| Main Specification | |
|---|---|
| Head Style | Flat |
| Technical Details | |
| Color | Red Copper |
| Material | T2 Red Copper |
| Fastener Type | Hexagon Bolt |
| Thread Size | M4 |
| Brand | Foyoram |
| Others | |
| Typ produktu | Bolts |
