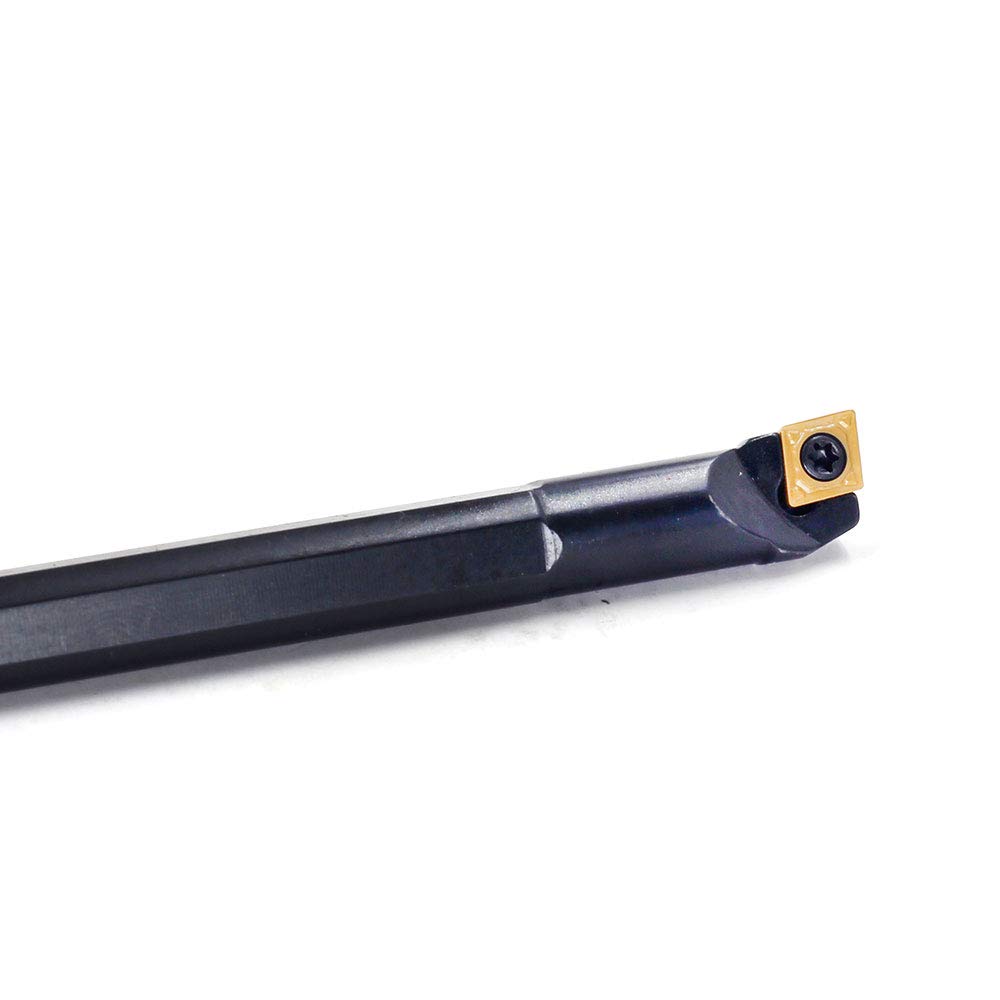

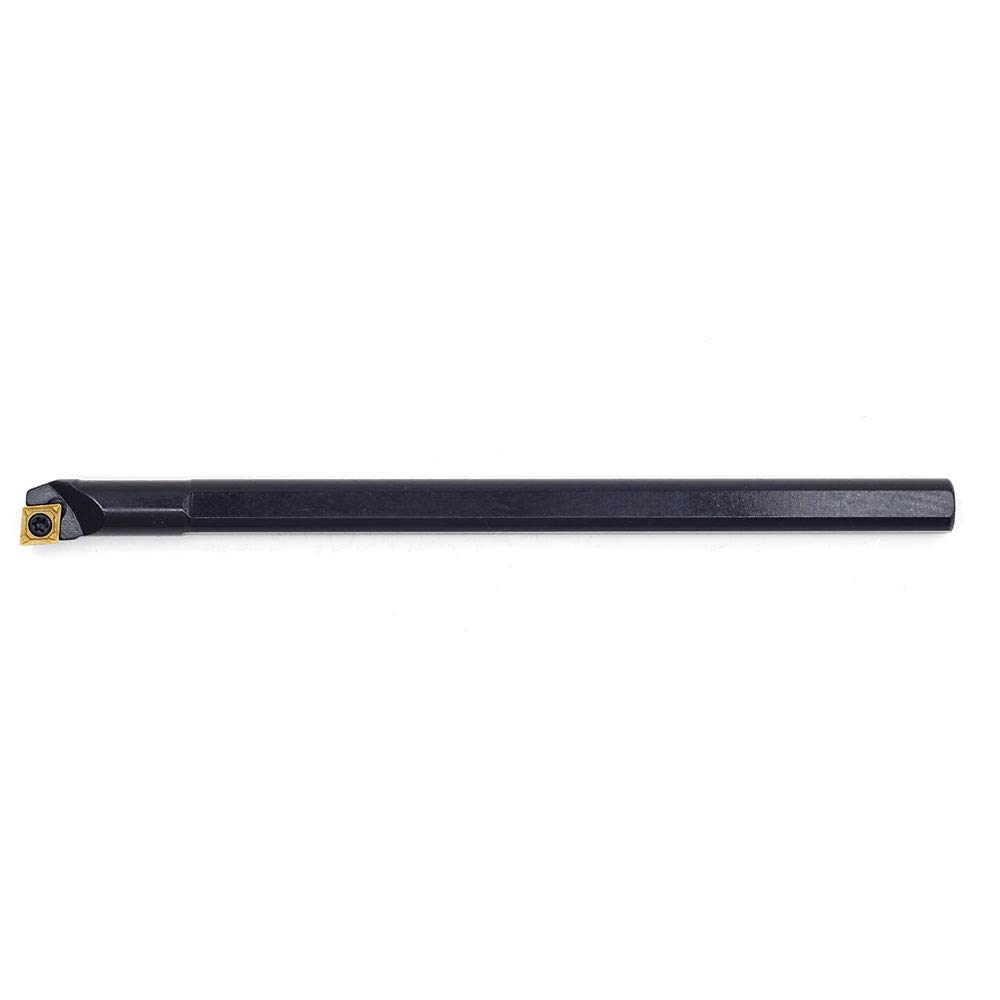

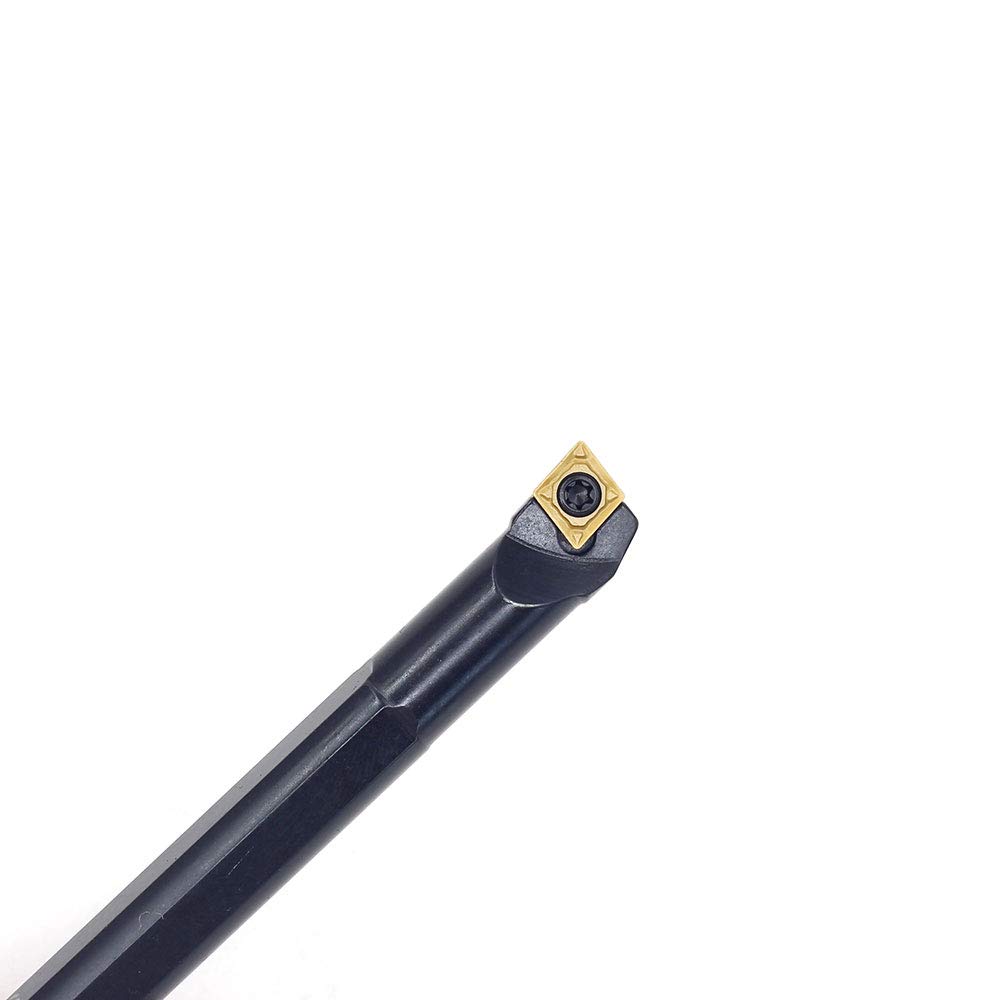

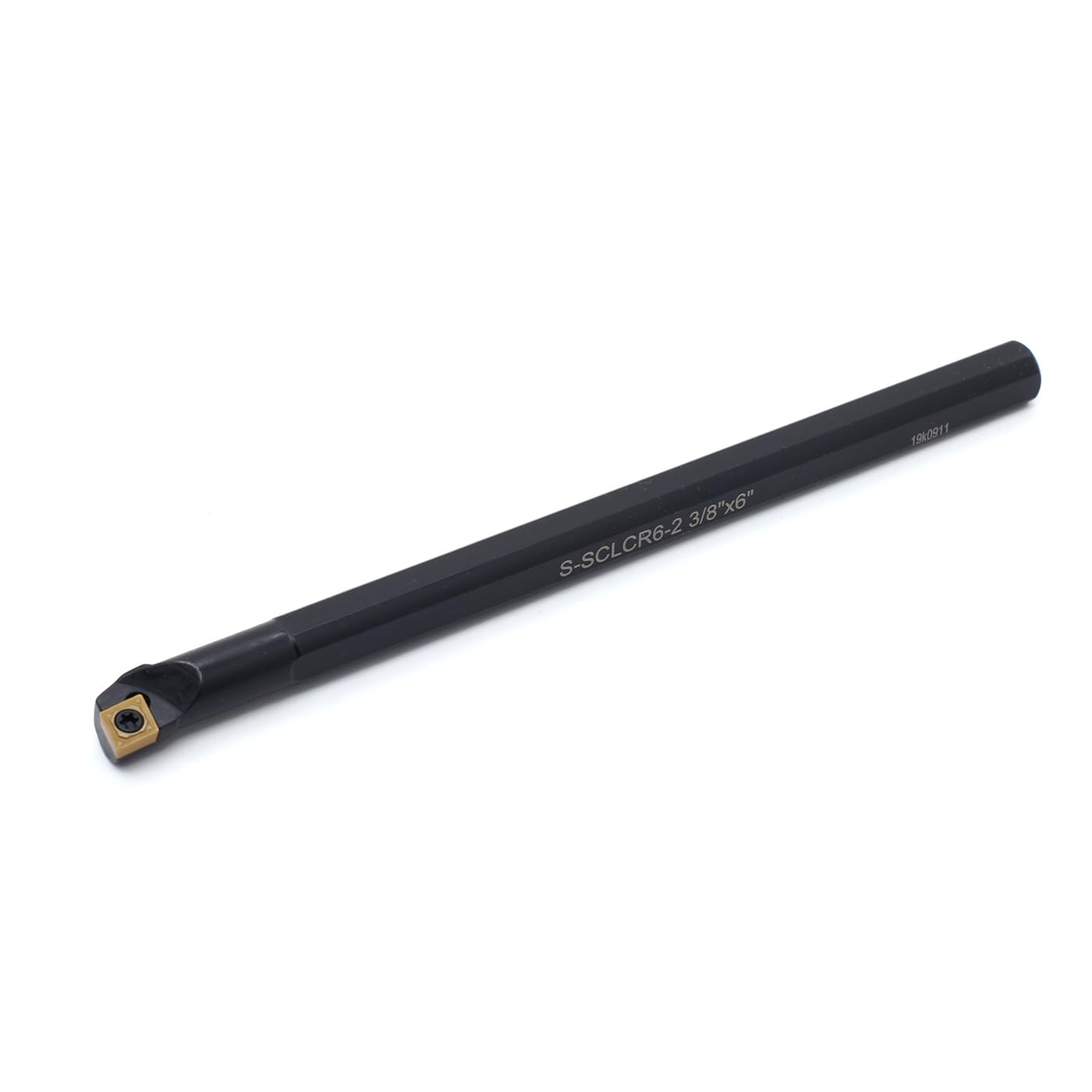

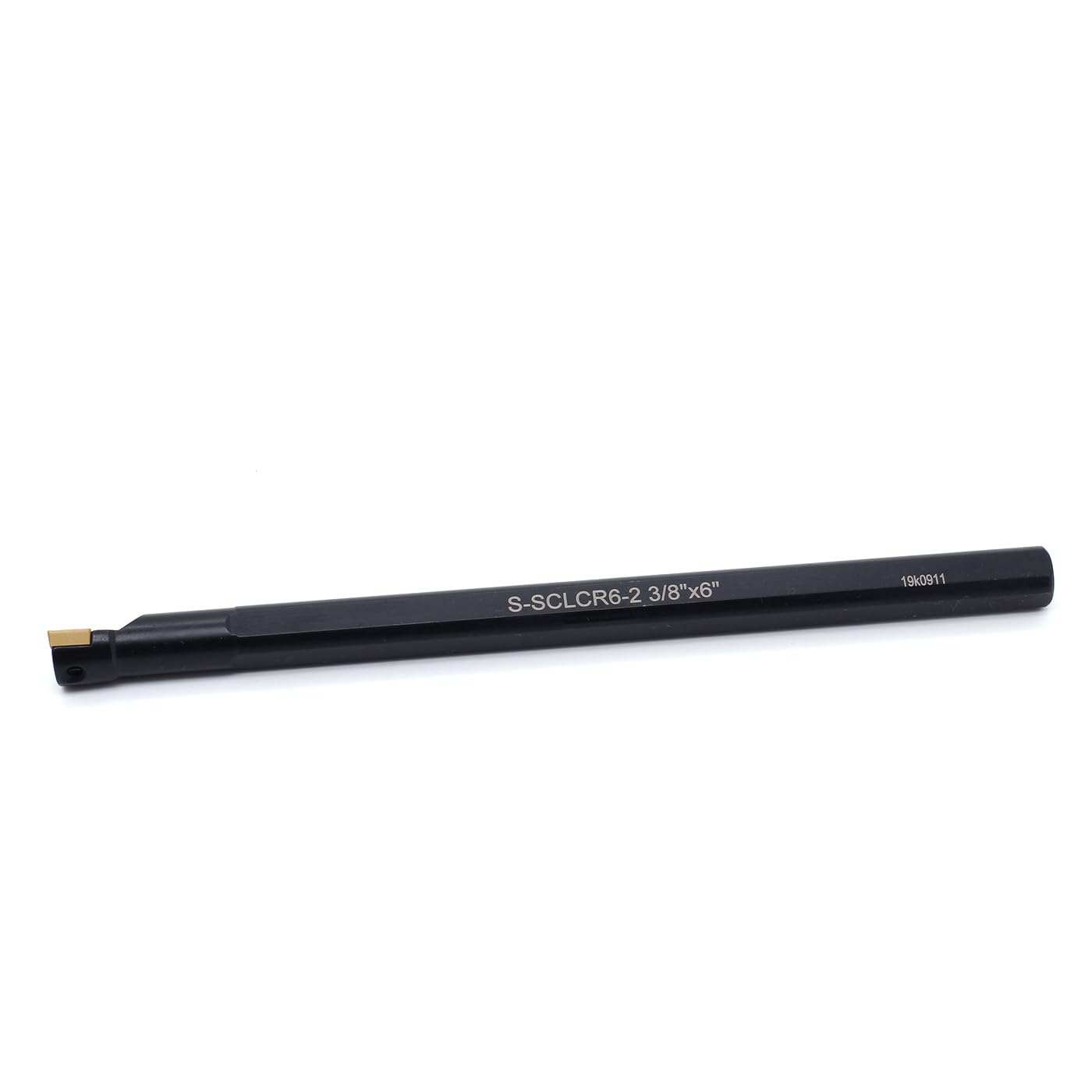

OSCARBIDE 3/8" x 6" Indexable Boring Bar SCLCR,Right-Hand
4 sold in last 24 hours
- Right-hand SCLCR boring bar with a 3/8" shank diameter and 6" overall length, designed for precision machining.
- Made from high-quality solid carbide with a multilayer coating, offering superior durability, long tool life, and faster cutting speeds. Features a low friction coefficient and excellent wear resistance.
- Ideal for turning internal holes, reaming, copying, and semi-finishing existing holes. Compatible with boring machines and lathe machines.
- Features 80° carbide inserts with a negative 5° end and side cutting angle, providing enhanced performance and precision in various machining tasks.e
- Replacement inserts available for this kit. Search for ASIN: B07RB129HH to purchase compatible inserts.
Tags |
Estimated shipping
Select a product to estimate shipping.OSCARBIDE 3/8′′ x6′′ Indexable Boring Bar (Right-Hand SCLCR)
The Perfect Balance – 8′′ Reach, 3/8′′ Rigidity, Professional-Grade Precision.
Brand Name: OSCARBIDE
Shank Diameter: 3/8''
Overall Length : 6''
Minimum Bore : 0.5"
Cutting Direction: Right Hand
Negative 5 degree end & side cutting angle
Positive 80 degree diamond CCMT inserts
Carbide Insert: CCMT21.51(CCMT060204)
Insert Screw: M2.5x6
Key: T8
3/8′′ rigid steel shank – Maximum stability for its size – reduces chatter and deflection for precise, vibration-free boring
6′′ overall length – Ideal reach for smaller workpieces and precision boring applications
Right-hand SCLCR design – 80° diamond insert geometry for versatile internal boring and finishing
Indexable design – Rotate or replace inserts in seconds – no grinding, no re-sharpening, no downtime
Versatile Boring Applications
The OSCARBIDE 3/8" x 6" Indexable Boring Bar is a versatile tool used for precision machining tasks. It excels in turning internal holes, reaming, copying, and semi-finishing existing holes. This right-hand SCLCR boring bar can be effectively utilized on various machines, including mills, lathes, and drill presses. Whether you're working with a boring head or a simple boring tool, this carbide bar delivers exceptional performance and accuracy in your boring operations.
OSCARBIDE 3/8"×6" Indexable Boring Bar

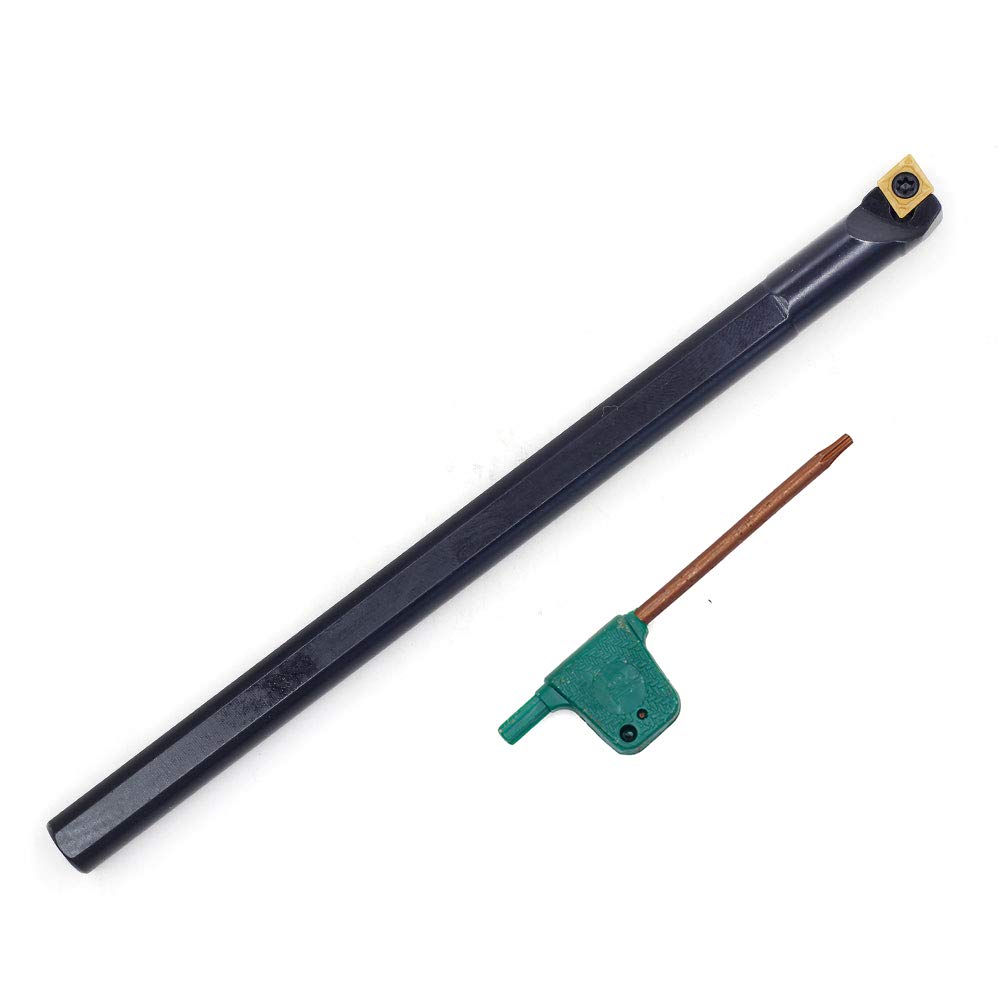

What's in the Box
3/8"×6" SCLCR Right-Hand Boring Bar × 1
CCMT21.51 (CCMT060204) Carbide Insert × 1 (pre-installed)
M2.5×6 Clamping Screw × 1
T8 Torx Wrench × 1
Small-Bore Precision Boring—No Chatter, No Compromise
The OSCARBIDE 3/8"×6" SCLCR right-hand boring bar is engineered specifically for small lathes and small-bore finishing work. At 3/8" diameter, it strikes the perfect balance between rigidity and compatibility with compact tool posts—it fits, it cuts, and it delivers a finish you can be proud of.
What you get in your shop:
Mirror finishes in small bores – Minimum bore diameter 0.5" (approx. 12.7mm). The 80° diamond CCMT21.51 insert with R0.4 nose radius delivers Ra0.8–1.6 in steel and stainless—no more sanding internal bores by hand
Rigid enough, without overloading your machine – 3/8" shank drops right into standard mini-lathe tool posts—no sleeves, no modifications, no adapters needed
Coated inserts that keep cutting – CVD multi-layer coating (Al2O3+TiCN) acts like a heat shield for the cutting edge—significantly longer tool life than uncoated carbide when machining steel and stainless
Carbide Insert:
We also provide Carbide Insert CCMT21.51(CCMT060204) for this kit
Please search the Asin of this item B07RB129HH to buy it.
Compatible Lathes
Q1: Will this boring bar fit my lathe?
A: Yes – if your lathe tool post or boring bar holder accepts 3/8′′ straight shank tooling . This fits most:
Mini lathes (7x, 8x, 9x series) – Sieg C2/C3, Grizzly G8688, Harbor Freight, Precision Matthews
Benchtop lathes – most 10′′-14′′ swing lathes with 3/8′′ tool capacity
CNC lathes – standard 3/8′′ boring bar holders
Quick-change tool posts (QCTP) – with 3/8′′ tool holder blocks
Critical : This bar requires a minimum bore diameter of 0.48′′ (12.2mm) . It will not fit holes smaller than this.
Q2: What lubricant should I use?
A: Use appropriate cutting fluid or coolant for your material. This is essential for:
Reducing heat and friction
Extending insert life
Improving surface finish
Preventing chip welding (especially on aluminum and stainless steel)
Q3: How do I install the inserts?
A: Use the included T-7 Torx key to:
Loosen the screw clamp (MTS-255 screw)
Rotate to a fresh edge or replace the insert
Re-tighten – do not over-torque
The screw-clamp design provides secure insert retention
Q4: How do I know when to rotate the insert?
A: Signs it‘s time to rotate:
Increased cutting resistance
Rough surface finish on the bore
Visible wear or chipping on the cutting edge
Unusual noise or vibration
Burn marks on the workpiece
Q5: Where can I buy replacement inserts?
A: Replacement CCMT21.51 (CCMT060204) inserts are available separately from OSCARBIDE and other suppliers. They are a standard, widely available insert type.
Q6: Does this bar have through-coolant capability?
A: No – this bar does not feature through-coolant. Use external coolant or cutting fluid applied to the cutting zone.
Product details
| Main Specification | |
|---|---|
| Wytwórca | OSCARBIDE TOOL |
| Marka | OSCARBIDE |
| Pozycja Waga | 0,01 uncji |
| Product information | |
| Wymiary opakowań | 6.02 x 1.06 x 0.83 inches |
| Numer modelu pozycji | 1 |
| Others | |
| Data pierwszego dostępnego | 2019 or 16 września |
| Typ produktu | Boring Bars |
