Ultrasonic Thickness Gauge Industrial-884X, PC Data, MILS/mm, 0.033–15.75 in
7 sold in last 24 hours
- PROFESSIONAL MATERIAL EVALUATION: Engineered for high-precision material thickness assessment in manufacturing, industrial quality control, and structural verification applications. Expertly measures base material thickness for steel, iron, aluminum, brass, glass, PVC, and other homogeneous solid materials, ensuring adherence to manufacturing and assembly tolerances.

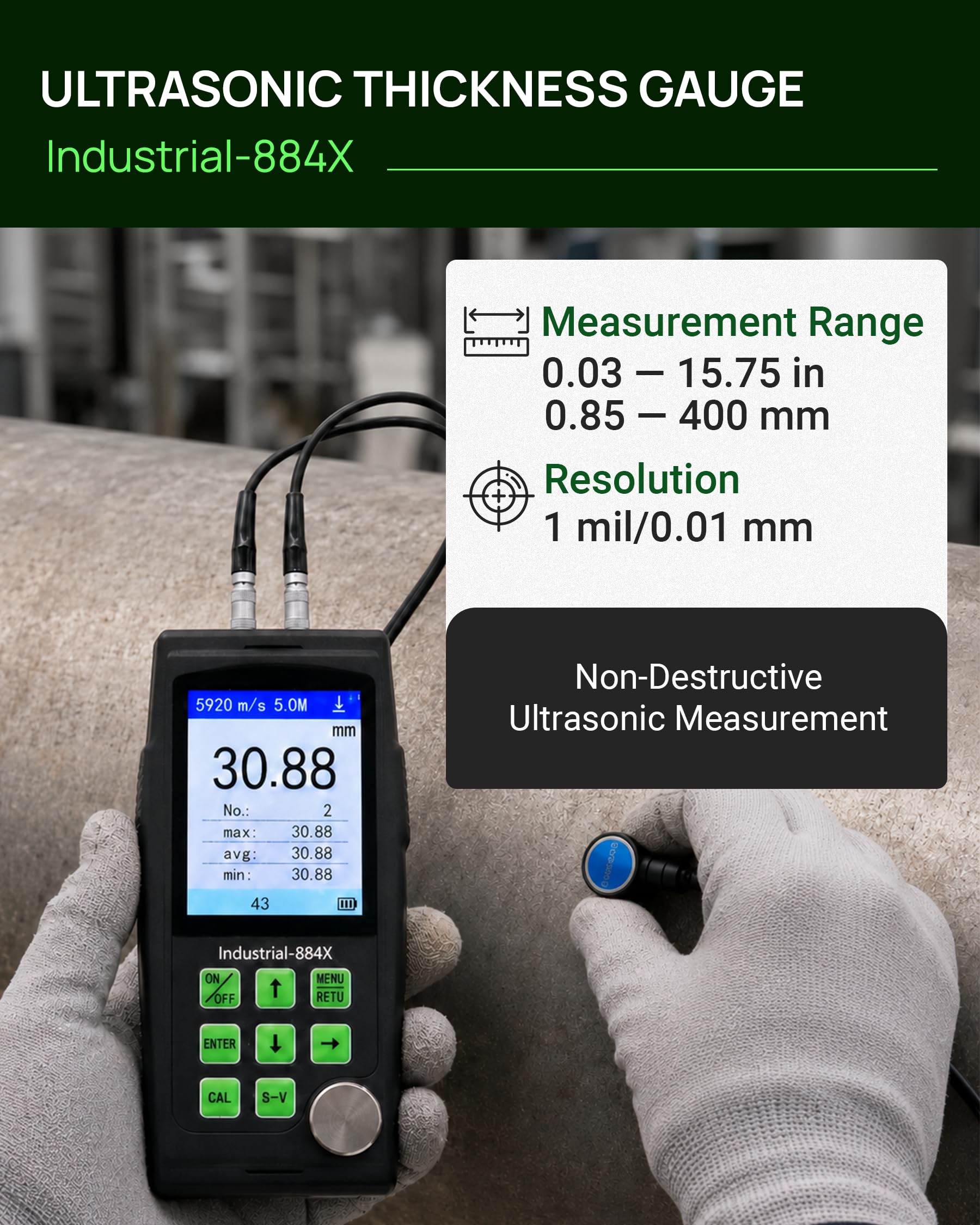

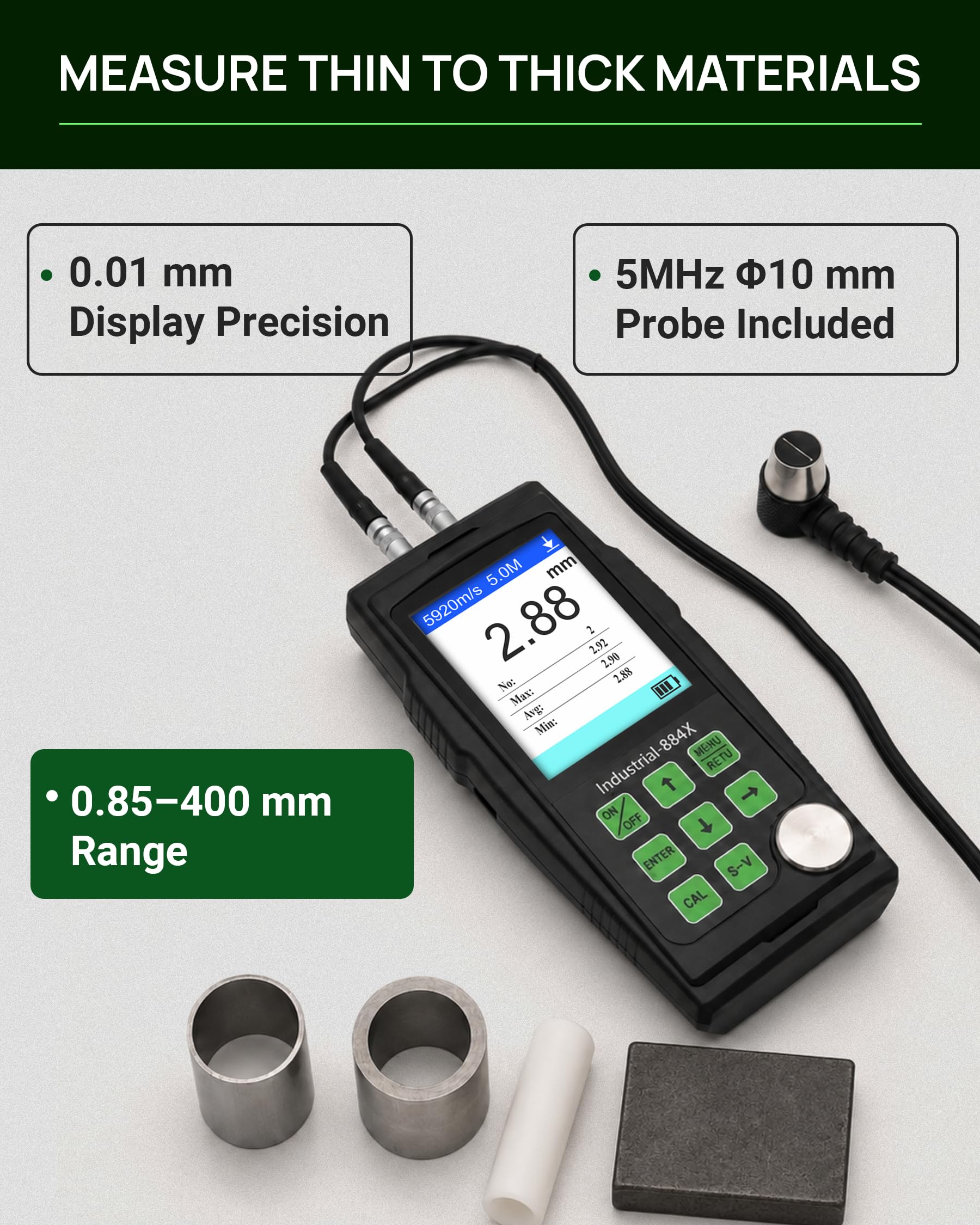

- PRECISION MEASUREMENT PERFORMANCE: Delivers a measurement range of 0.033–15.75 inches (0.85–400 mm) with a digital display resolution of 1 mils or 0.01 mm. Measurement accuracy is controlled at ±(1%H+0.1) mm, providing dependable data for engineering inspection workflows and dimensional quality assurance.

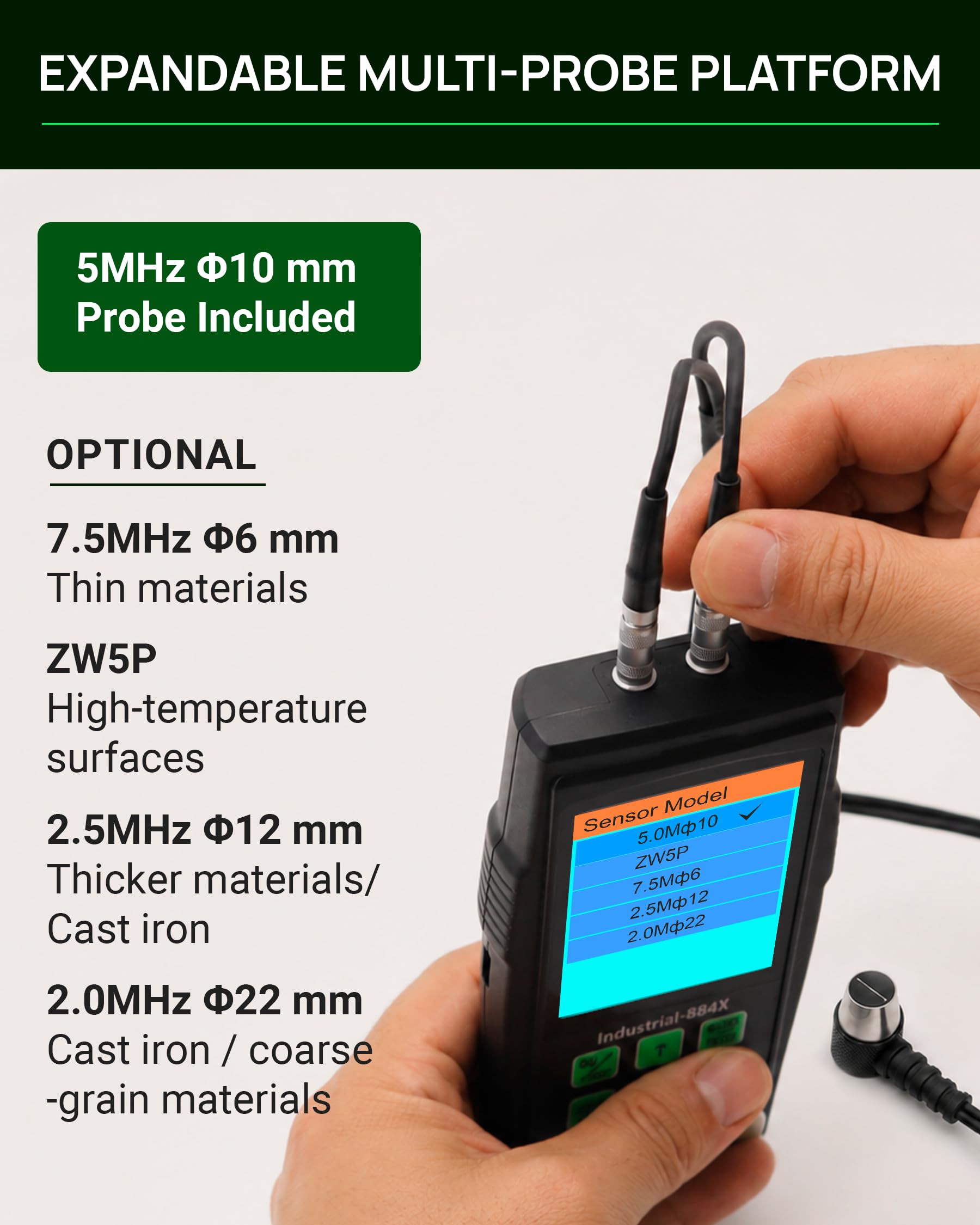

- EXPANDABLE PROBE ARCHITECTURE: Includes the standard 5MHzΦ10 probe for everyday measurements and supports specialized 7.5MHzΦ6, ZW5P (up to 572°F / 300°C), 2.5MHzΦ12, and 2.0MHzΦ22 probes, providing optimized performance for thin materials, high-temperature surfaces, thick steel, cast iron, coarse-grain metals, and heavy industrial inspections.

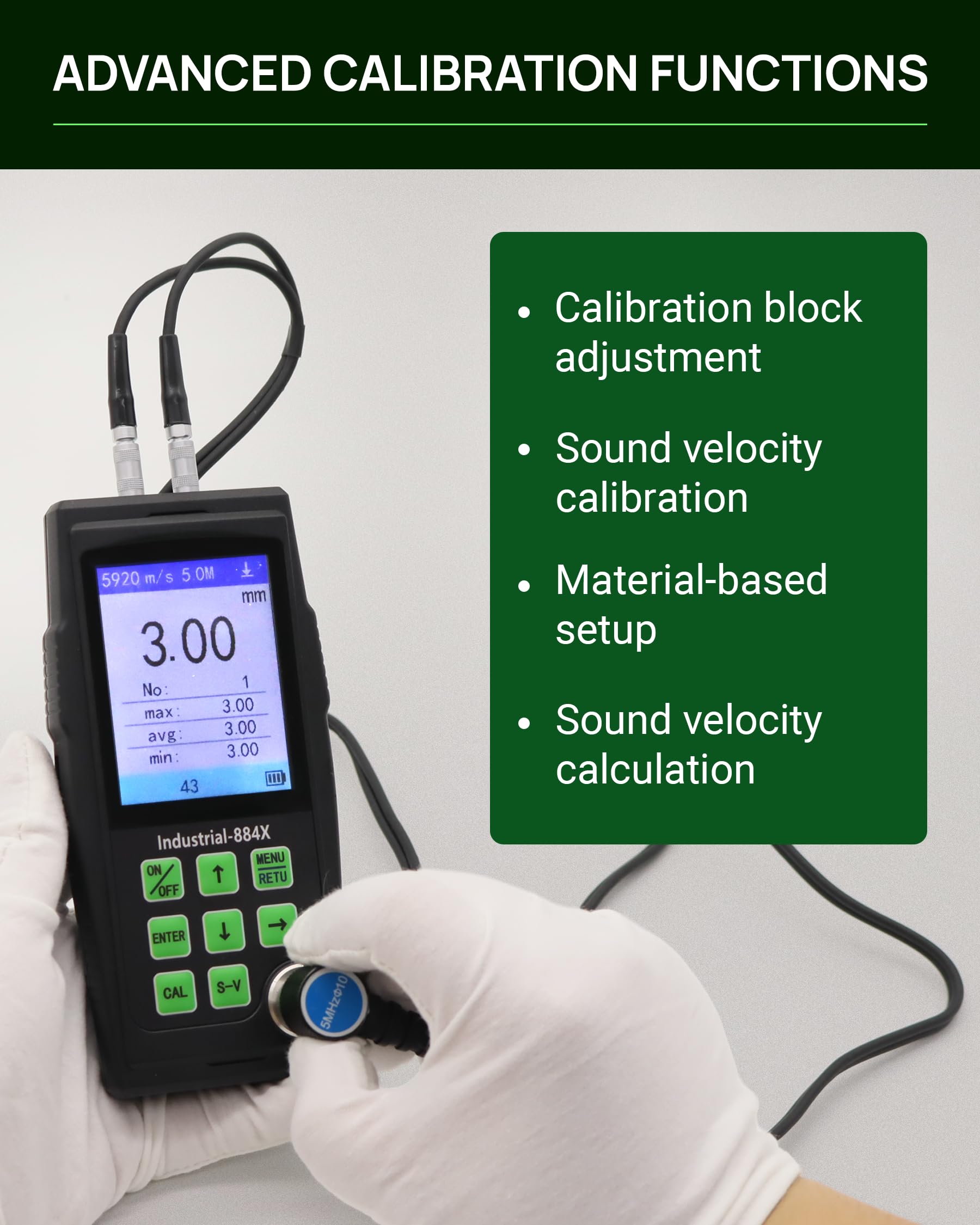

- INTELLIGENT SOUND VELOCITY CALIBRATION: Supports Zero Calibration, Manual Velocity Entry, and Automatic Sound Velocity Calculation using a reference sample of known thickness. Instead of searching material velocity tables, simply calibrate on a known sample and the gauge automatically determines the correct sound velocity, providing faster setup, improved accuracy, and more reliable measurements across different homogeneous materials.

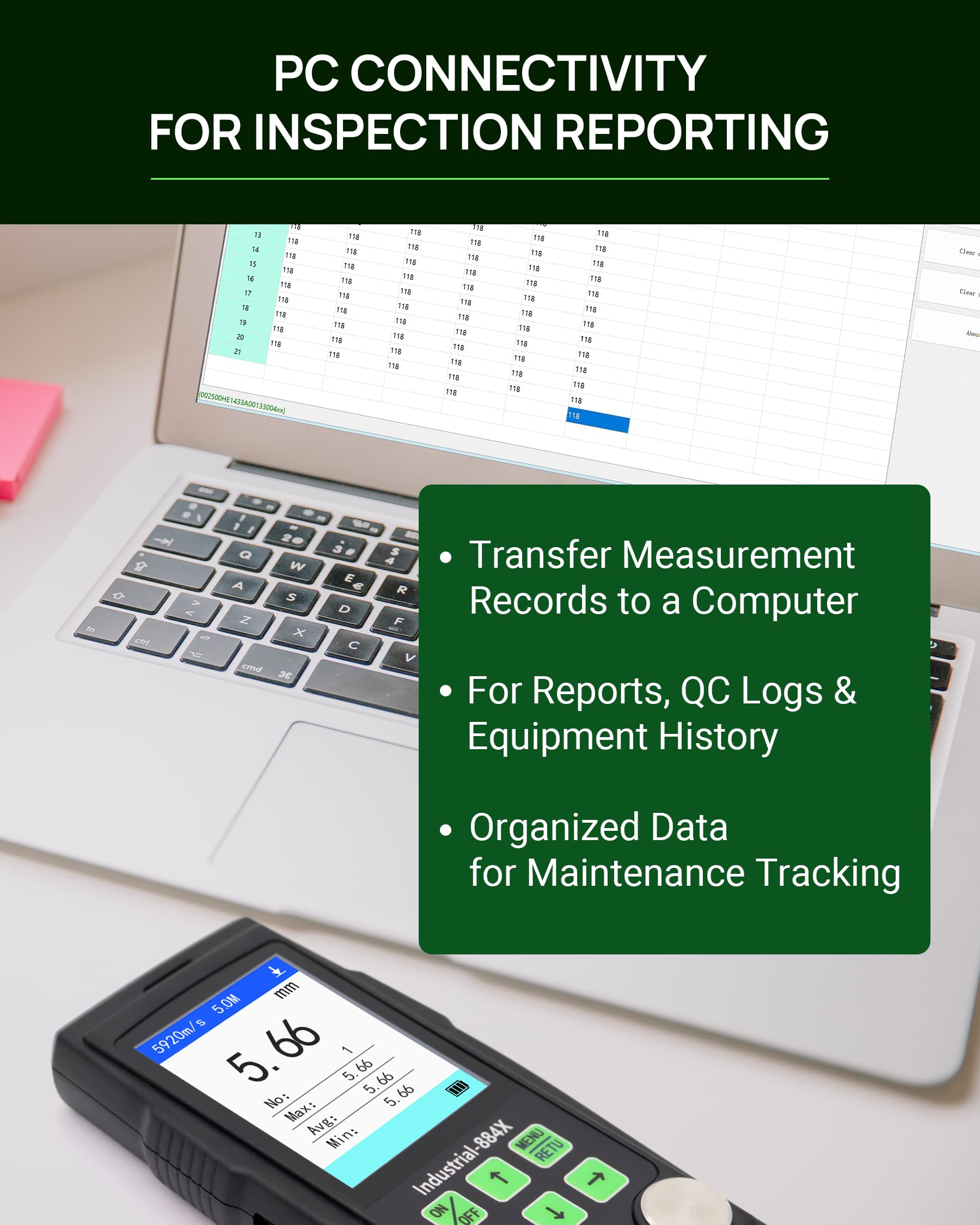

- PC DATA EXPORT FOR REPORTING – Transfer saved thickness readings to a computer for documentation, report generation, batch tracking, and long-term measurement records. Ideal for production logs, workshop documentation, material verification, and internal quality control processes.
- SMART DATA STORAGE & REVIEW – Save up to 2,000 thickness readings across multiple memory groups for organized inspection records, batch comparison, and production control. Built-in Min, Max, Average, and Count statistics help users quickly review measurement consistency and identify material variations during testing.
- RECHARGEABLE PORTABLE DESIGN – Built with a 3.7V 2000mAh lithium battery and USB Type-C charging for convenient daily use. Compact handheld construction with color LCD display makes the gauge suitable for workshop, factory, warehouse, and field inspection environments.
- VERSATILE INDUSTRIAL THICKNESS TESTING – Suitable for measuring wall thickness, plate thickness, pipe thickness, tank walls, machined parts, molded products, and fabricated components. Commonly used in manufacturing, metalworking, plastics production, assembly inspection, and material verification tasks.
Tags |
Estimated shipping
Select a product to estimate shipping.Ultrasonic Thickness Gauge Industrial-884X FUNCTION AND SPECIFICATION:
Enter a known thickness value and measure the sample. The gauge calculates material sound velocity for accurate custom measurements.
Use standard and optional probes for thin materials, curved pipes, thick steel, cast iron, and specialized inspections.
Select built-in material presets or create custom sound velocity settings for accurate thickness testing on special materials.
Check pipes, tanks, and steel structures for corrosion, erosion, and wall loss during maintenance and safety inspections.
Product details
| Main Specification | |
|---|---|
| Wytwórca | VVV-Group |
| Marka | VVV-Group |
| Pozycja Waga | 1,3 funta |
| Product information | |
| Wymiary opakowań | 8.94 x 5.47 x 3.11 inches |
| Baterie | 1 12v Batteries Required. (Included) |
| Others | |
| Data pierwszego dostępnego | 2026 or 16 czerwca |
| Typ produktu | Thickness |
