Ultrasonic Thickness Gauge Industrial-882 – Metal Thickness Tester for Steel, Pipes and Industrial Materials, 0.039–8.858 in (1–225 mm) Range, Color LCD, Auto Calibration, Handheld Thickness Tester
3 sold in last 24 hours
- ULTRASONIC THICKNESS GAUGE – INDUSTRIAL-882 FOR MATERIAL INSPECTION – Industrial-882 ultrasonic thickness gauge is designed for measuring the thickness of solid materials when access is available from one side only. It is commonly used for inspection of steel structures, pipes, tanks and metal components during maintenance and technical inspection.
- NON-DESTRUCTIVE ULTRASONIC MEASUREMENT METHOD – The device measures thickness by sending an ultrasonic signal through the material and calculating thickness from the echo return time. This allows technicians to evaluate metal thickness without cutting, drilling or damaging the inspected component.

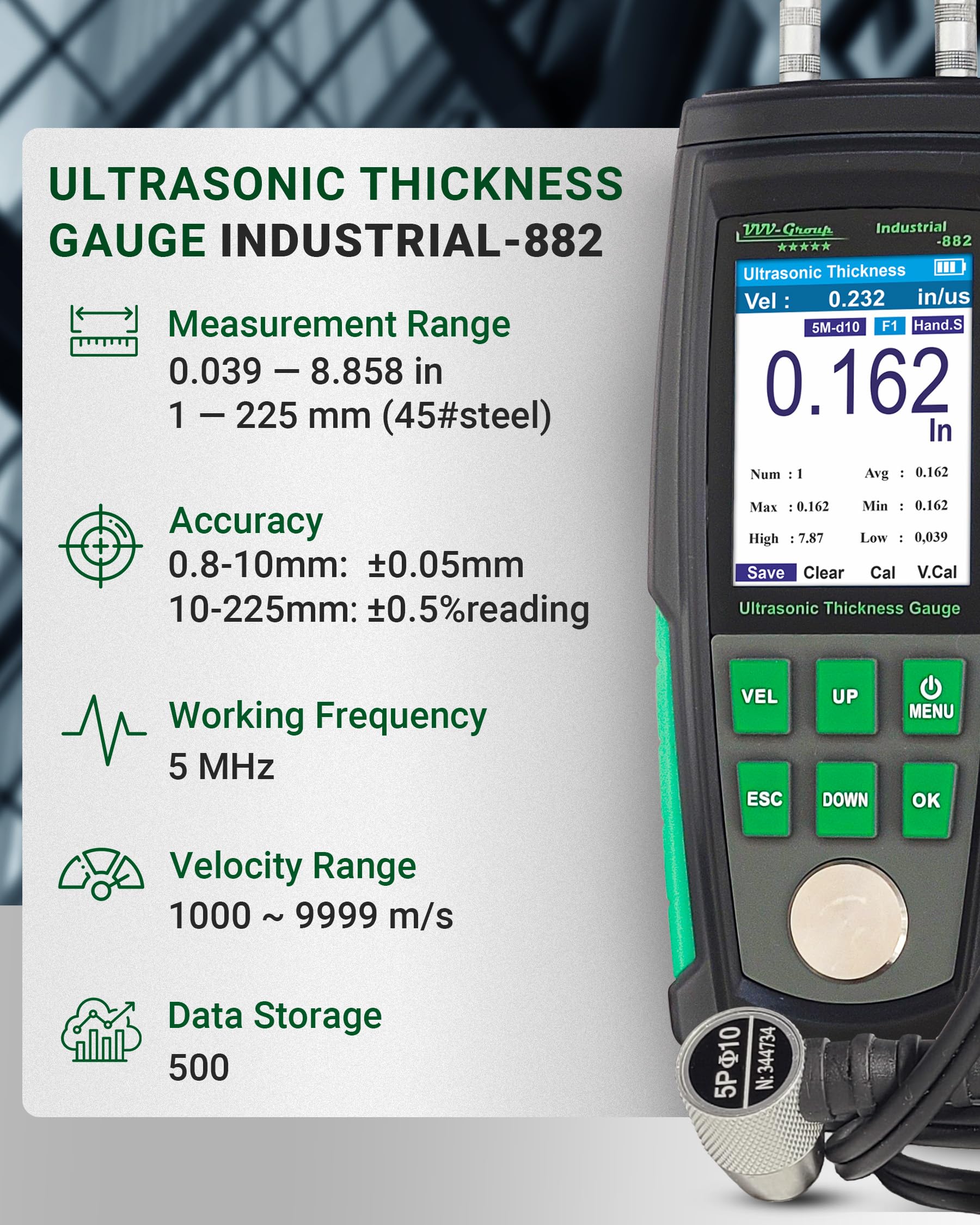

- WIDE MEASUREMENT RANGE FOR INDUSTRIAL APPLICATIONS – The measuring range of 0.039–8.858 in (1–225 mm) allows inspection of thin sheets, metal plates, machine parts and pipeline walls. The device can be used in maintenance inspections, industrial diagnostics and production quality control.

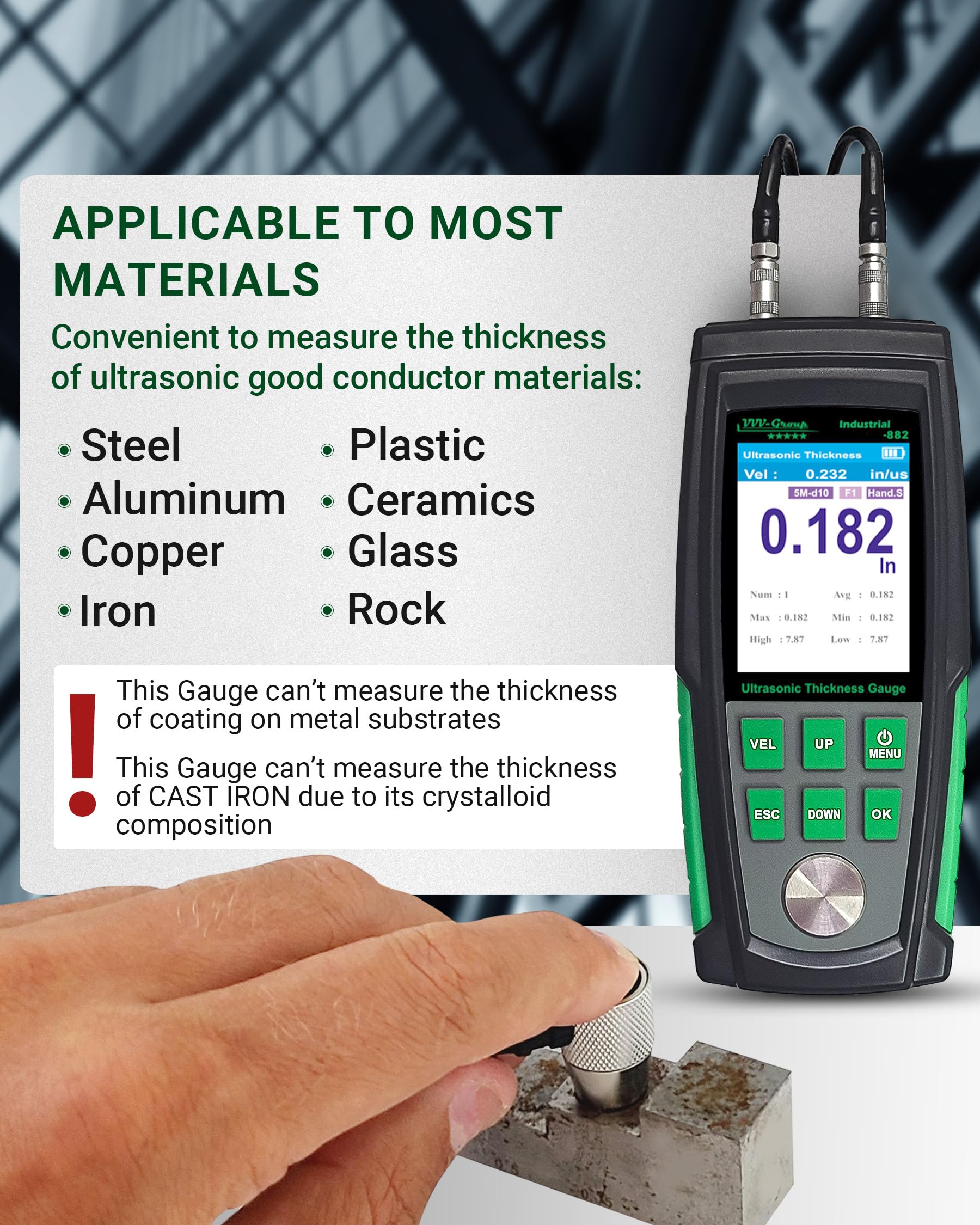

- ADJUSTABLE SOUND VELOCITY FOR DIFFERENT MATERIALS – Sound velocity can be adjusted to match different materials such as steel, aluminum, copper, plastic or glass. This helps obtain stable readings when measuring different types of materials in technical inspection tasks.

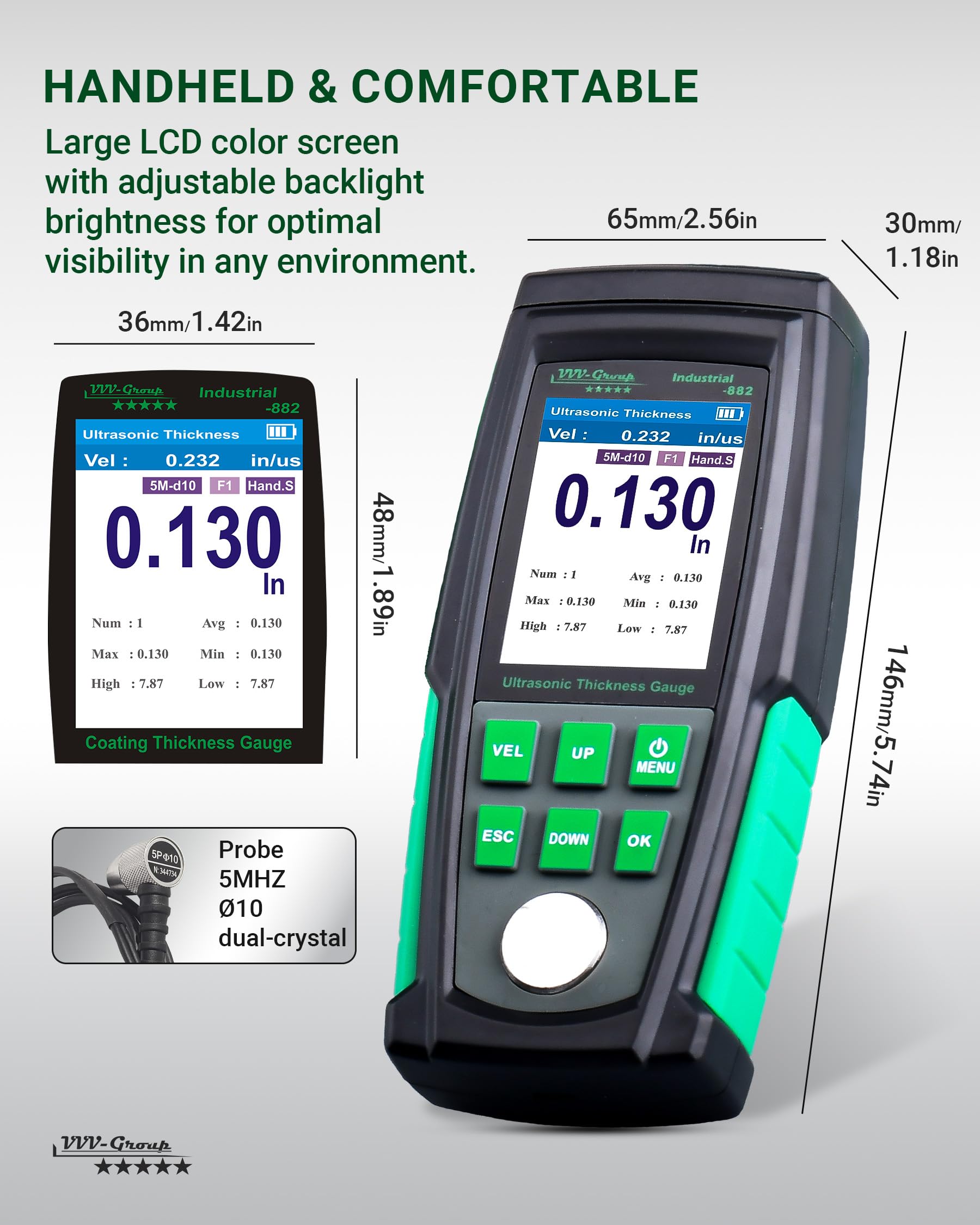

- COLOR LCD DISPLAY WITH CLEAR READINGS – The device features a color LCD display that allows users to read measurement values clearly in workshop and industrial environments. The interface allows convenient navigation when adjusting measurement parameters.
- DATA STORAGE FOR INSPECTION ROUTINES – The gauge can store measurement results collected during inspection sessions. This helps technicians compare readings from different areas of a structure or track measurements during routine equipment inspection.
- PORTABLE HANDHELD DESIGN FOR FIELD USE – Compact design and rechargeable battery allow the instrument to be used directly in maintenance environments such as production facilities, workshops or industrial sites where portable measurement tools are required.
- APPLICATION LIMITATIONS – IMPORTANT USAGE NOTE – This ultrasonic thickness gauge measures the thickness of solid materials only. It does not measure paint or coating thickness and is not designed for cast iron due to the material structure affecting ultrasonic signal propagation.
Tags |
Estimated shipping
Select a product to estimate shipping.Ultrasonic Thickness Gauge Industrial-882 FUNCTION AND SPECIFICATION:
What materials can be measured with this ultrasonic thickness gauge?
An ultrasonic thickness gauge measures the thickness of solid materials such as steel, aluminum, copper, plastic, glass and ceramics. It is commonly used to inspect pipes, tanks, plates and structural metal parts.

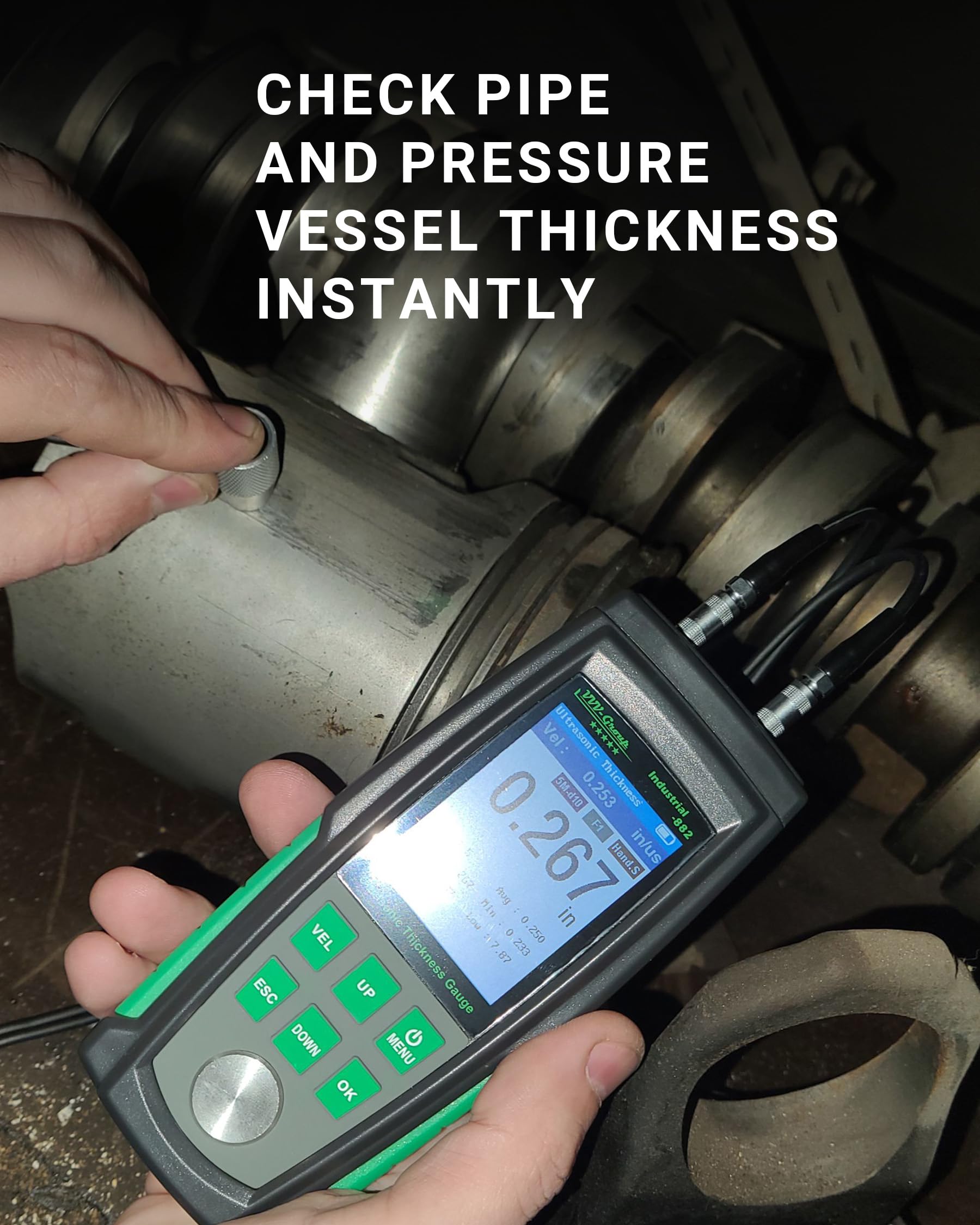

Can this ultrasonic thickness gauge measure pipe wall thickness?

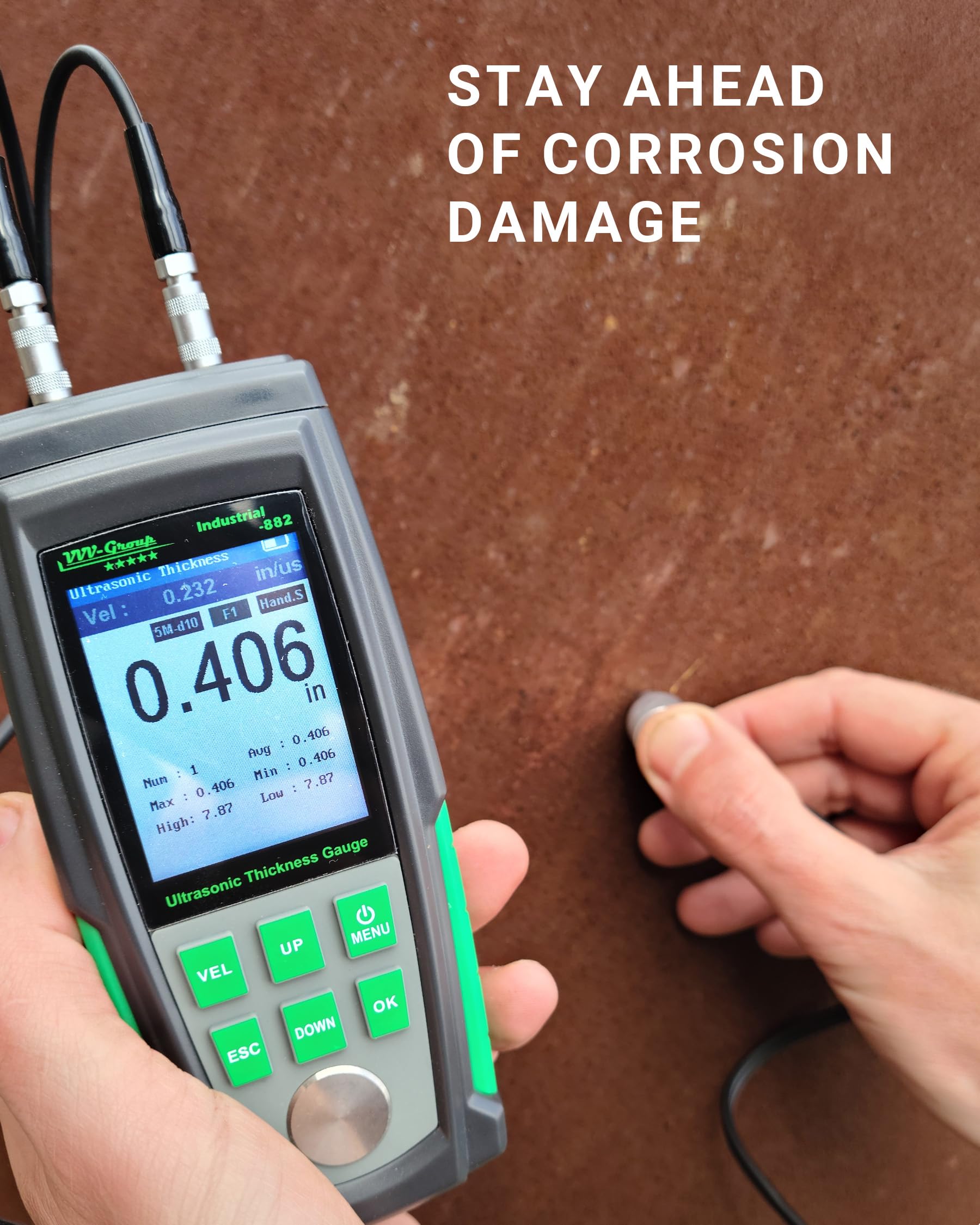

Yes. The gauge is commonly used to measure pipe wall thickness during maintenance and inspection. For example, technicians check pipelines or tanks to detect corrosion or metal wear without cutting the material.
Do you need coupling gel for ultrasonic thickness measurement?
Yes. Ultrasonic coupling gel is required because ultrasonic waves cannot travel through air. A small amount of gel between the probe and the surface allows the signal to enter the material correctly.
Can ultrasonic thickness gauges measure paint or coating?
No. Ultrasonic thickness gauges measure the thickness of the base material only. To measure paint or coating on metal surfaces you need a coating thickness gauge designed for that purpose.
What industries use ultrasonic thickness gauges?
Ultrasonic thickness gauges are widely used in industrial maintenance, manufacturing, metal processing and inspection. Typical applications include pipelines, pressure vessels, tanks and metal structures.
Product details
| Main Specification | |
|---|---|

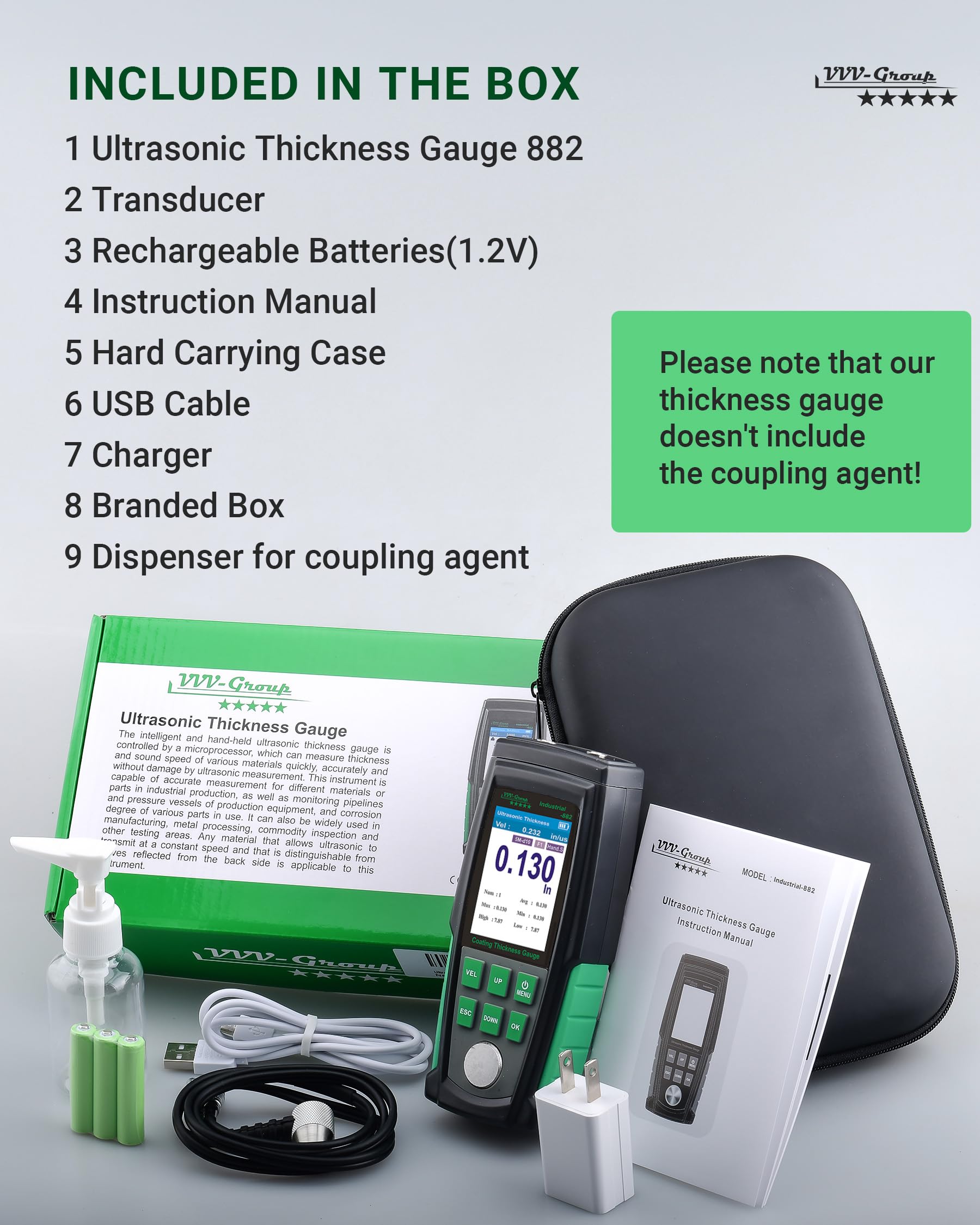

| Zawarte komponenty | kabel usb or Charger or Probe or ultrasonic thickness gauge or PU Box or Сontainer |
| Wytwórca | VVV-Group |
| Liczba jednostek | 1 Liczba |
| Pozycja Wymiary L x W x H | 7.87 x 4.72 x 1.97 inches |
| Marka | VVV-Group |
| UPC | 647356985126 |
| Liczba pozycji | 1 |
| Materiał | All materiаl |
| Pozycja Waga | 16 uncji |
| Product information | |
| Liczba opakowań | 1 |
| Technical Details | |
| Numer części | UT-882 |
| Wzór | UT-882 |
| Rodzaj materiału | All materiаl |
| Measurements | |
| Pozycja Wymiary | 7.87 x 4.72 x 1.97 inches |
| Others | |
| Typ produktu | Thickness |
