433Mhz Wireless Switch DC12V 4CH Relay Receiver Module + 4botton RF Remote Control 433Mhz Transmitter for Garage Car Gate, Blue
9 sold in last 24 hours

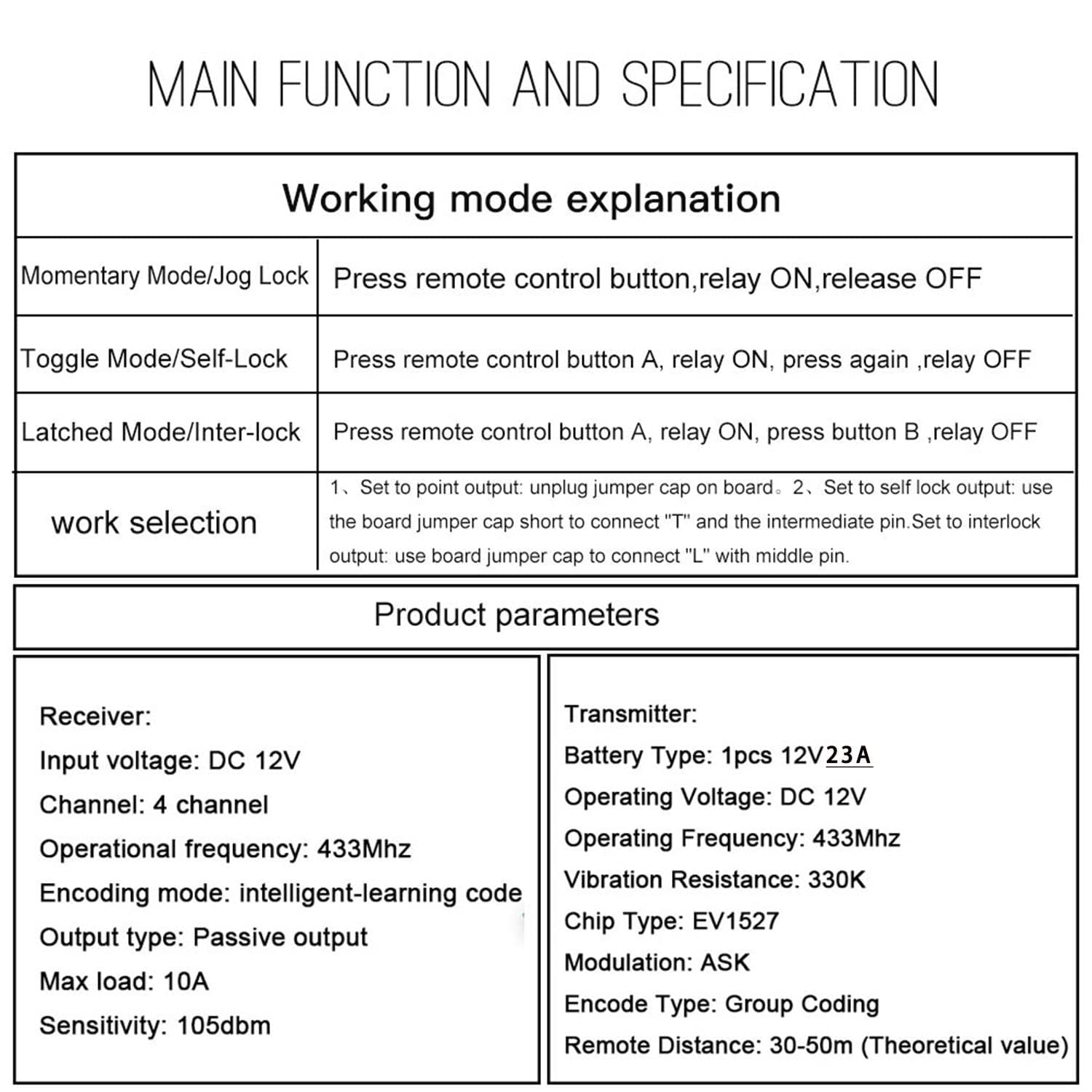

- Set to Jog /Momentary output: Remove the jumper cap on the board.
- Set as Self-locking /Toggle output: short the "T" and the middle pin with the jumper on the board.
- set to Interlock/ Latched output: use the jumper cap on the board to short "L" and the middle pin.
- can learn more than 20 different address code 2262 chip, 1527 chip equivalent frequency wireless remote control;
- Clear: Clear: press and hold the pairing button for about 8 seconds. The indicator will turn off and on, indicating that the stored information has been successfully cleared.
Estimated shipping
Select a product to estimate shipping.This 4-channel relay receiver module allows you to control devices wirelessly using a 433MHz remote control. It’s a versatile solution for automating simple tasks around your home or garage.
Key Highlights
- Flexible Output Modes: Easily switch between Jog/Momentary, Self-Locking/Toggle, and Interlock/Latched outputs to suit your specific needs.
- Remote Control Compatibility: Supports learning and using over 20 different 433MHz address codes, compatible with a wide range of remote controls.
- Simple Setup: The quick connect terminals and PCB mount design make installation straightforward.
- Reliable Operation: Handles up to 10 Amps of current, suitable for powering low-voltage devices.
- Clear Pairing: Easily clear stored information with a simple pairing button press.
Useful Facts
- Operation Mode: ON-OFF
- Current Rating: 10 Amps
- Operating Voltage: 12 Volts
- Contact Type: Normally Open
- Connector Type: Quick Connect
- Switch Type: Toggle
- Circuit Type: 4-way
- Item Dimensions: 6 x 6 x 10.9 Centimeters
Good Fit For
- Garage door openers
- Car gates
- Small lighting systems
- Simple automation projects
- DIY electronics projects
| Main Specification | |
|---|---|
| Wytwórca | HOUSE OF ELECTRONICS |
| Liczba jednostek | 1 Liczba |
| Metoda kontroli | Zdalne |
| Typ kontrolera | Przycisk |
| Materiał kontaktowy | Miedź |
| Typ kontaktu | Normalnie otwarte |
| Bieżąca ocena | 10 |
| Napięcie robocze | 12 Volts |
| Terminal | Pieprz |
| Typ obwodu | 4- way |
| Typ aktywatora | Przycisk |
| Marka | Ogólne |
| Typ sterowania | zdalny |
| Liczba pozycji | 3 |
| Tryb działania | WYŁĄCZENIE |
| Kompatybilne urządzenia | 433MHz devices |
| Kolor | Niebieski |
| Typ złącza | Quick Connect |
| Typ montażu | Instalacja PCB |
| Product information | |
| Typ przełącznika | Włączenie / wyłączenie |
| Technical Details | |
| Rodzaj materiału | Plastikowe |
| Liczba pozycji | 4 |
| Protokół w sprawie połączeń | 433MHz RF |
| Kraj pochodzenia | Indie |
| Item details | |
| Nazwa typu elementu | pcb |
| Measurements | |
| Pozycja Wymiary | 6 x 6 x 10.9 Centimeters |
| Others | |
| Typ produktu | pcb |
