GBJ WC Series Indexable U Drill Efficient CNC Metal Drilling Performance
15 sold in last 24 hours
- [Applicable]: Recommended for ordinary drilling and cross hole drilling, suitable for shallow drilling and intermittent drilling
- [Advantages]: Quickly discharge iron filings, crush iron filings, and do not stick to the drill bit. Suitable for reinforcement and non steel, aluminum, brass, etc
- [Material]: TiN coating adopts a carbide matrix, which is wear-resistant and heat-resistant, and is not easy to stick to the tool holder or workpiece. Vacuum hardening, exquisite craftsmanship, easy to cut.

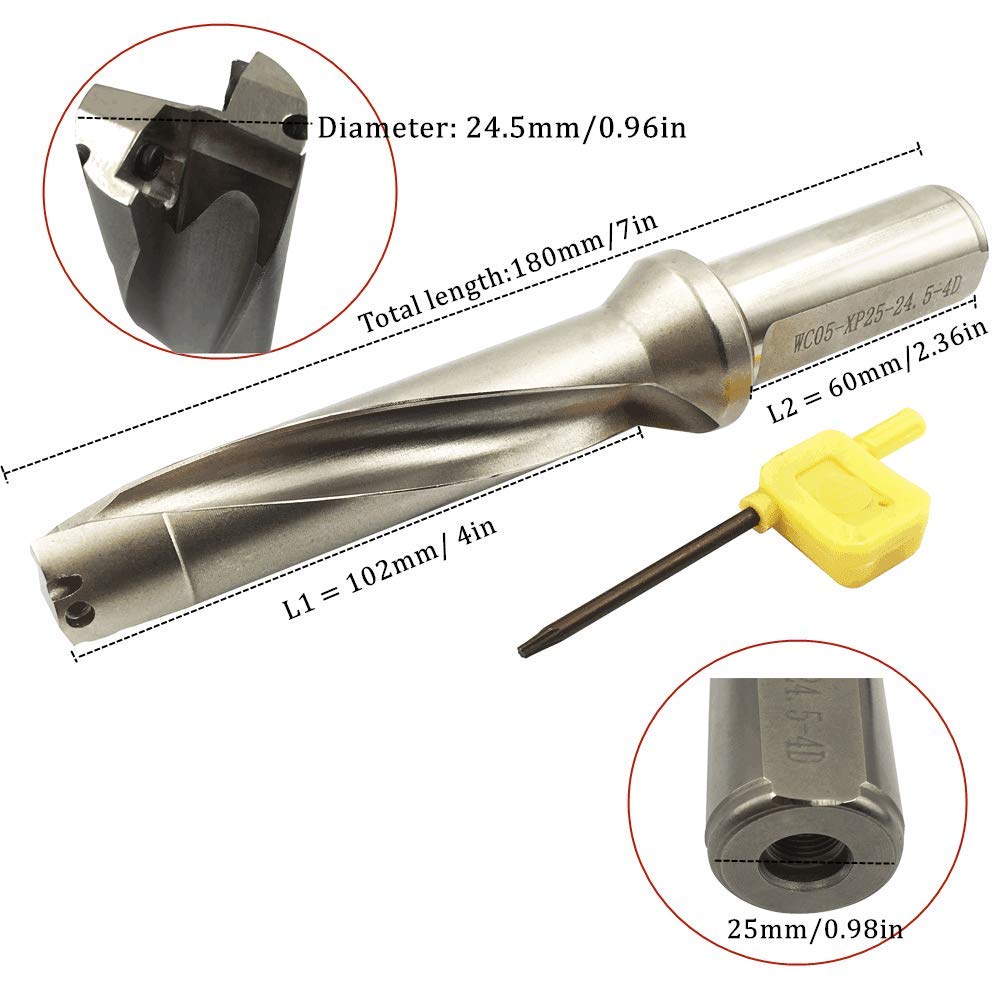

- [Point Drill size] Total length: 7 in/180 mm,Diameter:0.98 inches/25 mm,Cutting depth: 4 in/102 mm, Cutting diameter: 0.96 in/24.5 mm

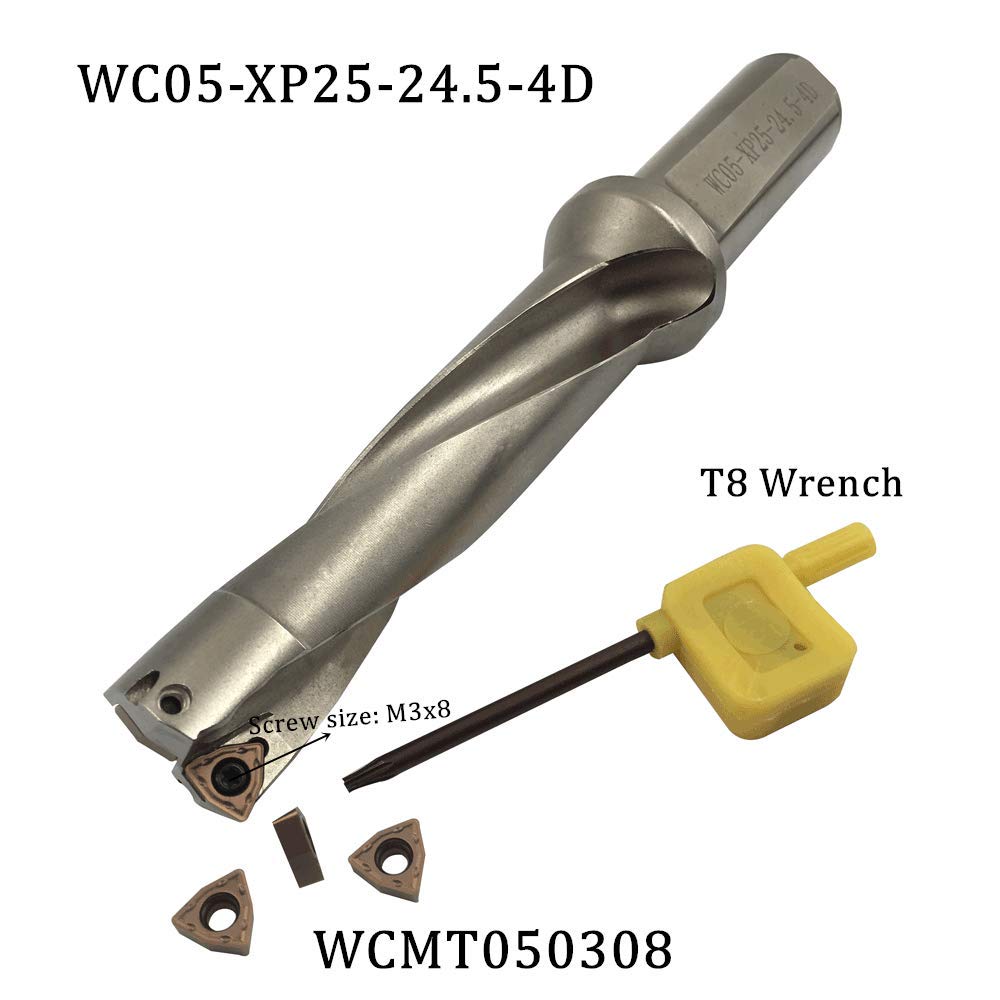

- 5. [Packaging List]: 1 WC05-XP25-24.5-4D drill bit+10 WCMT050308FN drilling Inserts
Tags |
Estimated shipping
Select a product to estimate shipping.This tool holder can be used for different fixtures and can process raw materials such as steel, stainless steel, aluminum, etc. It has a built-in cooling channel to improve efficiency
Product details
| Main Specification | |
|---|---|
| Materiał | Stal stopowa or Carbide |
| Wytwórca | GBJ |
| Liczba jednostek | 1 Liczba |
| Zalecenie dotyczące powierzchni | Iron |
| Cutting Diameter | 24.5 millimeters |
| Styl punktowy | Taper Point |
| Shank Type | Straight |
| Tool Flute Type | Straight |
| Marka | GBJ |
| UPC | 787823341069 |
| Cutting Angle String | 118 Degrees |
| Liczba części | 11 |
| Typ zakończenia | Bronze |
| Product information | |
| Ustaw nazwę | Set of 10 |
| Technical Details | |
| Rodzaj materiału | Stal stopowa or carbide |
| Numer części | gbj |
| Wzór | WCMT050308 |
| Number of Flutes | 2 |
| Style | |
| Zakończ typy | Bronze |
| Others | |
| Typ produktu | Drilling Inserts |
| Pozycja Podświetlenie | 0.96in 4D indexable Udrill with 4in drilling depth comes with 10 WCMT050308 inserts water-cooled for CNC lathe metal drilling |
