Easycargo 40mm Heatsink Kit 40x40x20mm + 3M8810 Thermal Conductive Adhesive Tape, Cooler Aluminium Heat Sink for Cooling 3D Printer Stepper Motor TEC1-12706 Thermoelectric Peltier 40mmx40mmx20mm (4)
5 sold in last 24 hours
- 40mm aluminum heatsink kit
- Material: Extruded Aluminum 6063-T5
- Dimension: 40mm x 40mm x 20mm (L*W*H)
- Weight: 0.9 oz /25 gr per piece
- Pre applied 3M 8810 thermal conductive adhesive tape
Tags |
Estimated shipping
Select a product to estimate shipping.40mm Heatsink Kit 40x40x20mm
This 40mm (L) x 40mm (W) extruded aluminum heatsink kit is specially designed for Cooling 3D Printers Stepper Driver, NEMA 17, TEC1-12706 Thermoelectric Peltier Modules. This set of heatsink is mid-profile (0.8" / 20mm) and made from 6063-T5 aluminum alloy with high thermal conductivity, structure stability and light weight. The heatsink extrusion is in vertical and horizontal grooves, that is greatly increases the heat dissipation function. The surface of extruded aluminum is anodized. This kit of heatsink comes with 40x40mm pre-applied thermal conductive adhesive tape, for easy installation and optimum heat conductivity.
Specifications
Material: Extruded Aluminum 6063-T5
Coating: Anodized

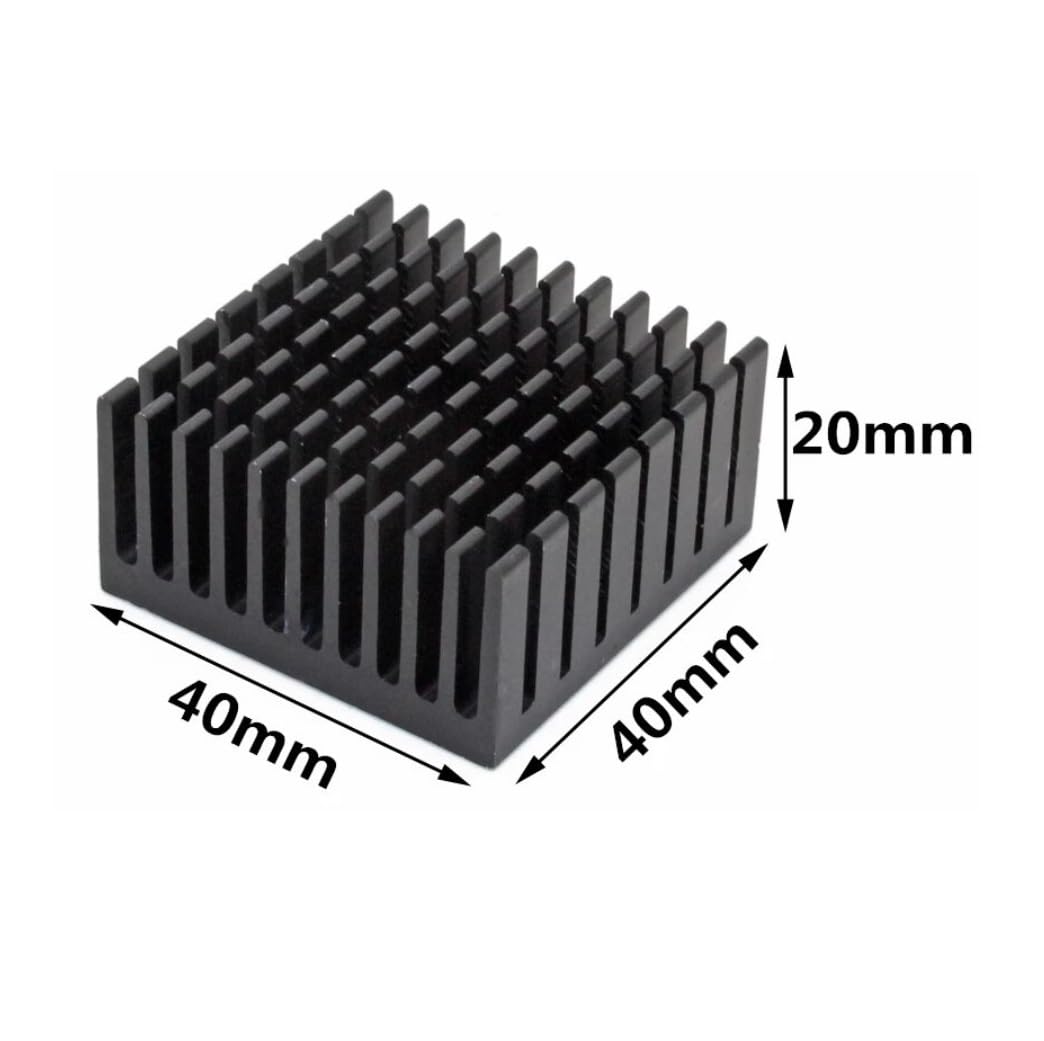

Dimension: 1.6" x 1.6" x 0.8" / 40mm x 40mm x 20mm (L*W*H)
Weight: 1.1 oz / 31 gr per piece
Mounting Style: SMD/SMT
Fin Style: Vertical
Number of fins: 11×6
Standard: RoHS compliance
Heatsinks come with 40mmx40mm pre-applied thermal conductive adhesive tape for easy installation, strong adhesion and premium thermal conductivity.
The 40mmx40mmx20mm heatsink, with its compact size and efficient cooling capabilities, proves valuable in a wide range of applications where managing thermal performance is essential for the reliable operation of electronic components, Electronic Devices, Robotic Projects, LED Modules, Telecommunication Devices, Wi-Fi Routers, Medical Devices, Solar Invertors, Servers, Industrial Applications, Amplifiers and Audio Equipment, Power Supplies.
This set of 40mm heatsink is perfectly fit for cooling 3D printer stepper motor, Nema 17, Thermoelectric Peltier Cooler Module.
Product details
| Main Specification | |
|---|---|
| Wytwórca | Easycargo |
| Liczba jednostek | 1 Liczba |
| Pozycja Wymiary L x W x H | 1.57"L x 1.57"W x 0.43"H |
| Marka | Easycargo |
| Liczba pozycji | 4 |
| Zawarte komponenty | Heatsink 40mm |
| Wymiary produktu | 1.57"L x 1.57"W x 0.43"H |
| Typ montażu | Montaż panelu |
| Pozycja Waga | 25 g |
| Product information | |
| Liczba opakowań | 1 |
| Technical Details | |
| Numer części | 4040xxB04-8810 |
| Wzór | 404020B04-8810 |
| Others | |
| Kompatybilność grzejnika chłodniczego | 3D Printer or Stepper Motor or Peltier Module |
| Typ produktu | Heatsinks |
| Chłodziarka Materiał grzejnikowy | Aluminum |
