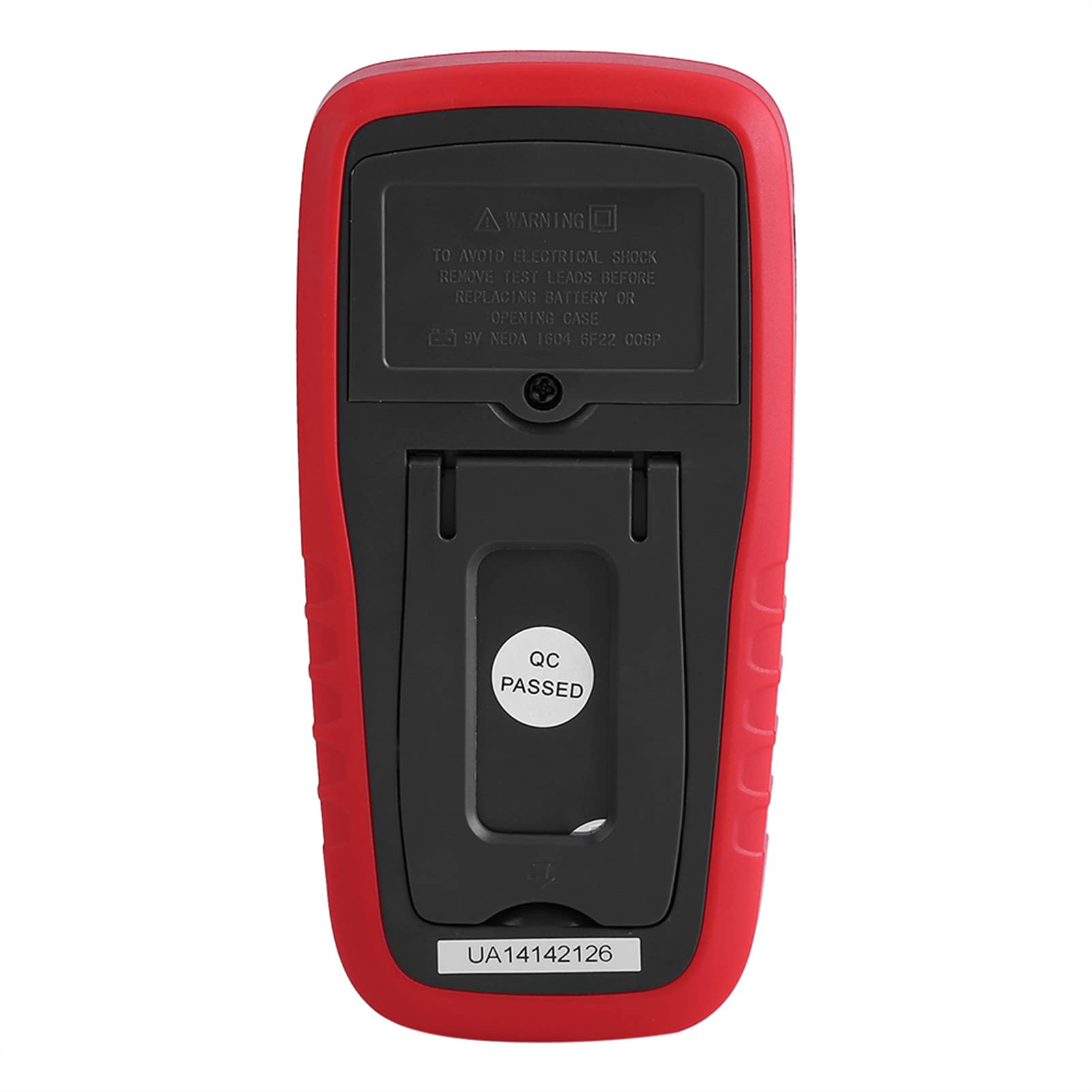

Watris Veiyi Digital Capacitance Meter, Multimeter Capacitor Tester
8 sold in last 24 hours
- 【Test Range】It is a novel handheld LCD display capacitance meter, which can be used to measure 9 data ranges in the range of 0.1 pF to 20,000 uF, which are divided into 9 levels.
- 【LCD Digital Display】Digital capacitance meter 6013L LCD digital display with data retention and backlight function, accurate reading, maximum display: "1999, It is an ideal electrical measurement tool.
- 【Equipped with Safety Jacket】The overall structure of the digital capacitance meter is compact, with a safety jacket, equipped with two test lines, and the built-in bracket can make the tester stand stably, and it is easy to operate and carry.
- 【Specification】The sampling rate of the digital capacitance meter is 2-3 times per second, 9V battery power supply, low power consumption, the power supply is 6F22 9V laminated battery (not included), the size is 5.59"x2.91"x1.38".
- 【Widely Application】The multimeter professional capacitance tester can be used for digital analysis, capacitor selection, unknown capacitor measurement, matching capacitors, and measuring cable capacitance.
Tags |
Estimated shipping
Select a product to estimate shipping.The digital capacitance meter 6013L is a novel handheld LCD display capacitive table that can be used to measure 9 range of data over a wide range from 0.1 pF to 20,000 uF.

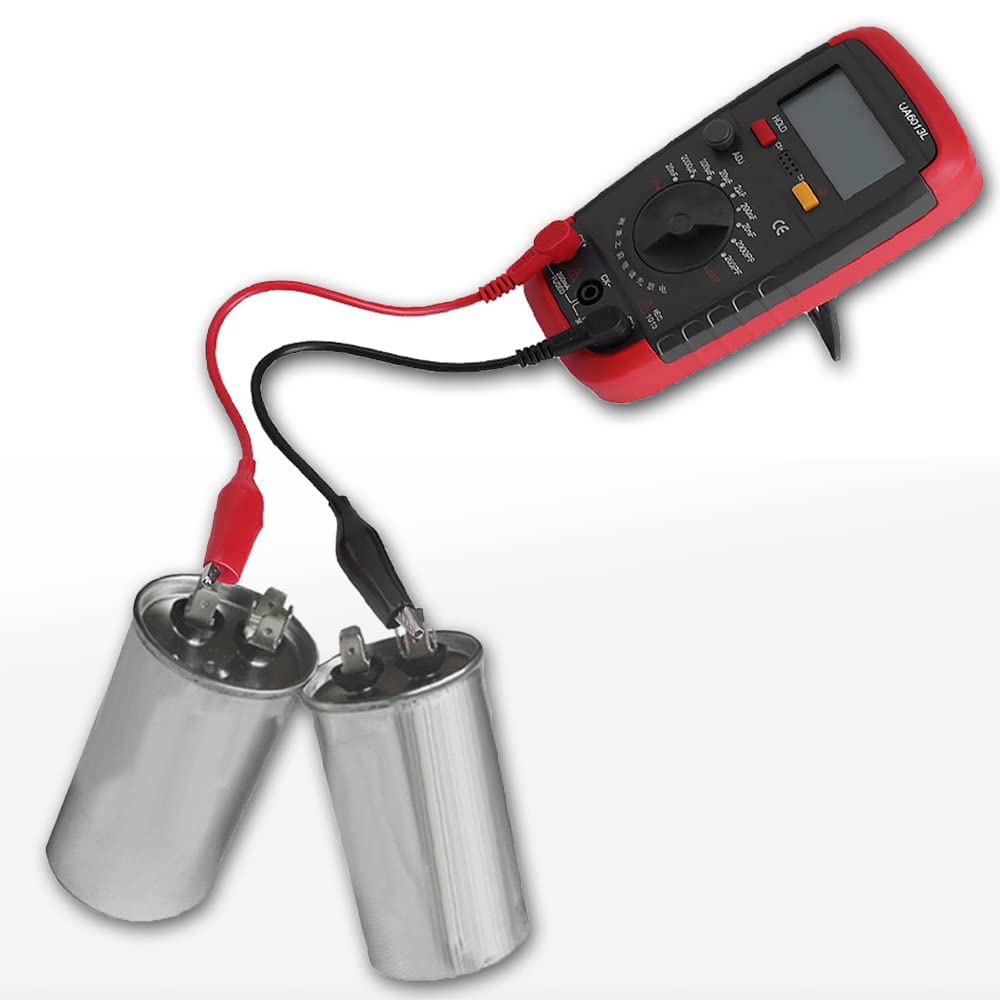

The table can also be used for digital analysis, selection of capacitors, measurement of unknown capacitors, matching capacitors, measuring cable capacitance and so on.
And has data retention and backlighting function. The instrument structure is compact, with a safety jacket, easy to operate, easy to carry, is the ideal electrical measurement props.
6013L LCD Digital Display with Data Retention and Backlight Function and Maximum Display: "1999".
9 Files Digital Capacitance Meter, Which Can Be Used to Measure in the Range of 0.1 pF to 20,000 uF.
Socket into Which Test Leads Are Inserted, Equipped with Two Wires with Alligator Clips.
Sampling rate: 2-3 times per second
Zero adjustment: Manual
Power supply: 6F22 9V laminated battery (Not included)
Maintain accurate operating temperature: 23 ± 5 °C
Working environment: 0-40 °C Relative humidity: ≤85 °C
Storage environment: temperature -10-50 °C, relative humidity: ≤ 85%
Size: (L) x (W) x (H)142 x 74 x 35mm / 5.59" x 2.91" x1.38"(appr.)
Product details
| Main Specification | |
|---|---|
| Wytwórca | Watris Veiyi |
| Liczba jednostek | 1 Liczba |
| Marka | Watris Veiyi |
| Liczba pozycji | 1 |
| Zawarte komponenty | Inc |
| Źródło energii | Bateria zasilana |
| Kompatybilne urządzenia | default |
| Ocena wyższych temperatur | 40 ° C |
| Kolor | Czerwony + czarny |
| Styl | Kompakt |
| Product information | |
| Ocena niższej temperatury | 18 °C |
| Technical Details | |
| Numer części | Watris Veiyitfxmcbdh01 |
| Wzór | 6013L |
| Typ pomiaru | Multimetr |
| Style | |
| Nazwa stylu | Kompakt |
| Others | |
| Pozycja Podświetlenie | 0.1pF-20 or 000uF Capacitor Tester or 9 Files Battery Powered Capacitor Meter Tester with 6013L LCD Display |
| Typ produktu | Capacitance Meters |
| Minimalne napięcie robocze | 9 volts_of_direct_current |
