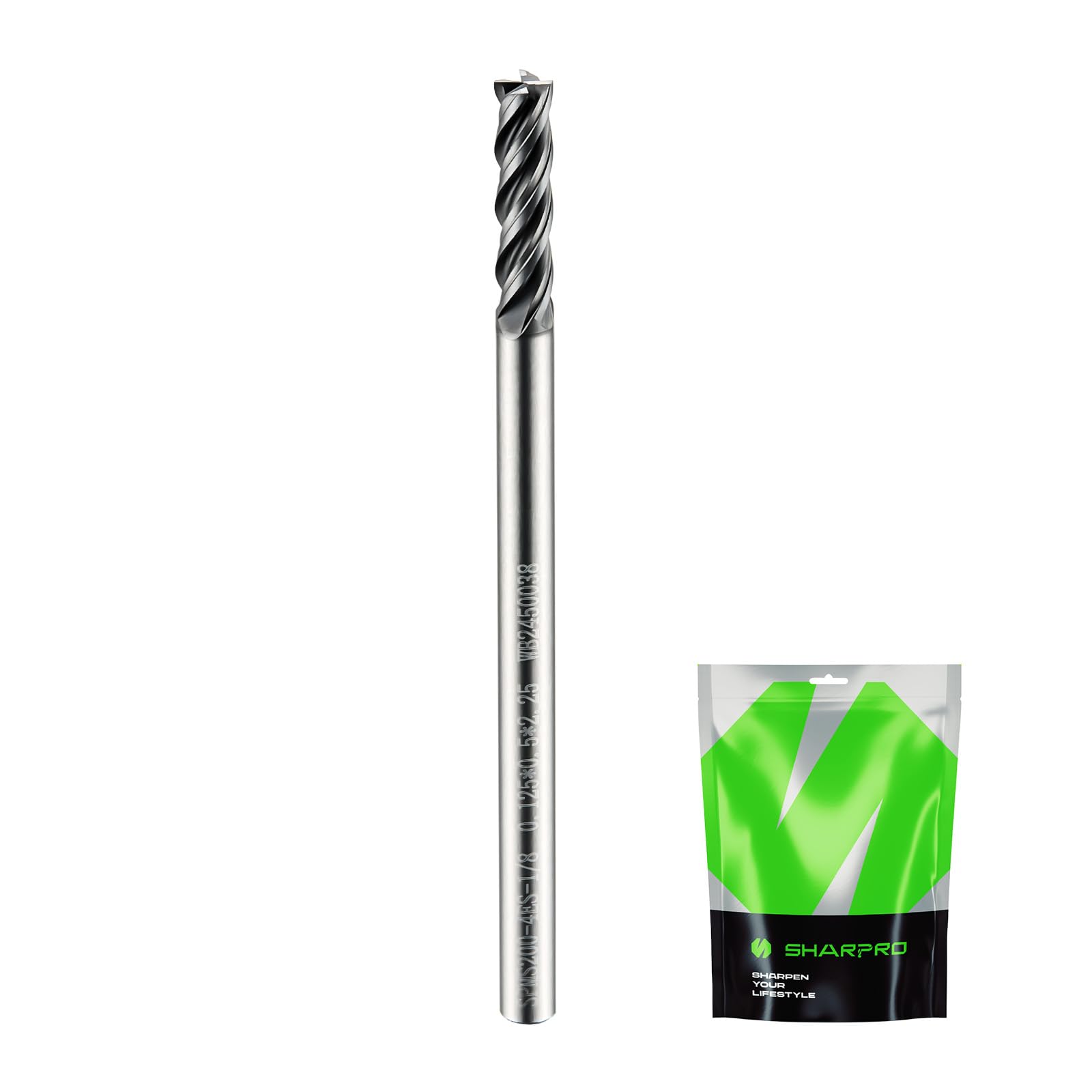

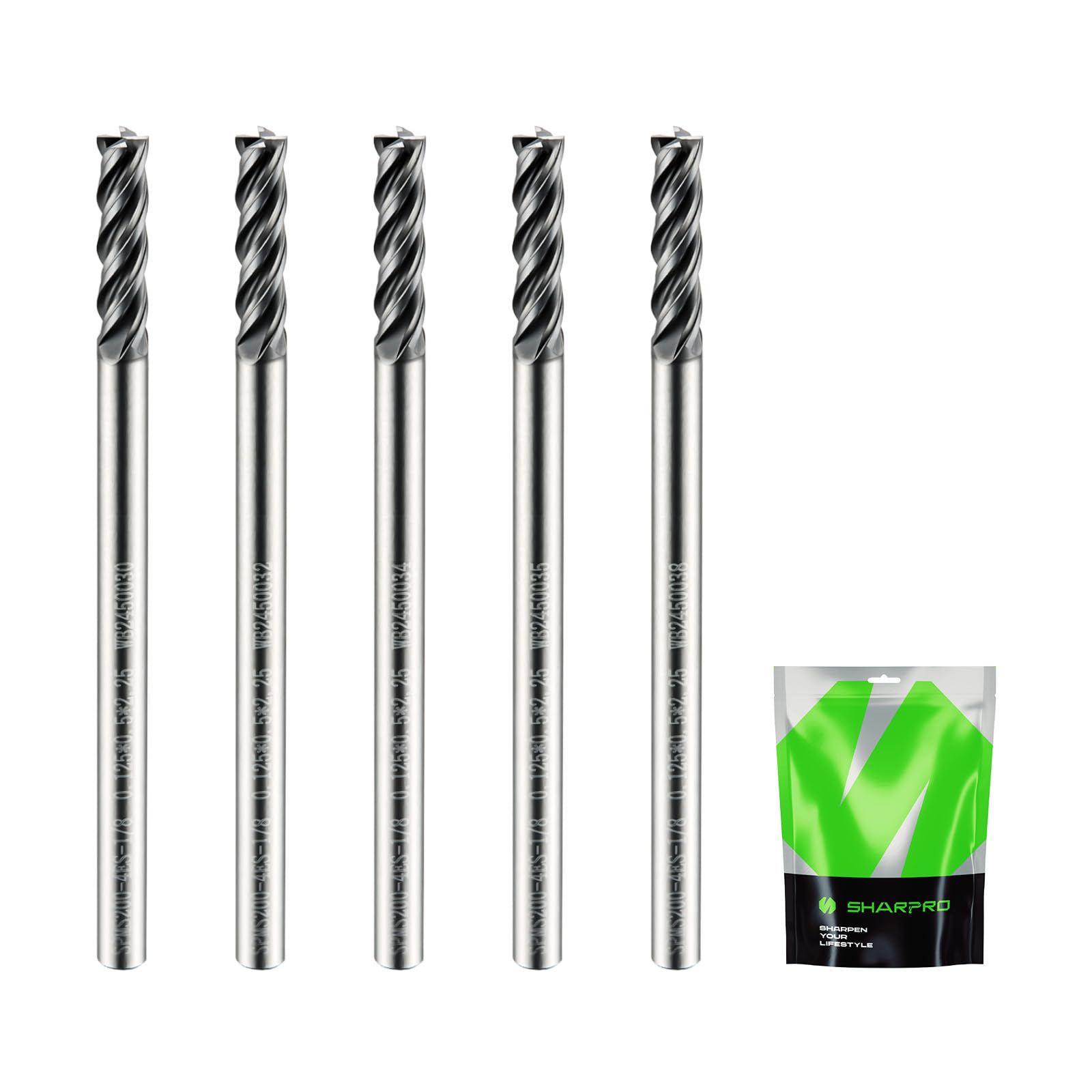

1/8 Inch Shank Carbide Square End Mill, 4 Flute CNC End Mills, Heat-Resistant Metal Endmill Suitable Alloy Steel, Stainless Steel, Various Cast Iron（5PCS）
15 sold in last 24 hours
- Application: Highly effective in machining various types of Steel, such as Alloy Steel (HB 125 - 400), Stainless Steel (HB 200 - 300), and various Cast Iron (HB 155 - 260).
- Vibration-free design: The cutting edges of this milling cutter are designed with unequal spacing to reduce vibration and are suitable for high-speed machining.
- Heat-resistant: This mill has excellent high precision with an error within ±0.02mm and is coated with AlCrN, which can provide stable and precise machining under high-temperature conditions.
- Compatibility: Compatible with CNC milling machines, CNC machining centers, and milling machines. It can be used for plunging applications.
- Brand: High quality is guaranteed by SHARPRO. Our factory is equipped with automation machines of top global brands. The unique serial code at the unit level enables quality tracking throughout the production process.
Tags |
Estimated shipping
Select a product to estimate shipping.What materials can this end mill cut?
This carbide end mill is designed for precision cutting of metals, including stainless steel, alloy steel and cast iron. It is not recommended for wood, plastic or aluminum, as unsuitable materials may reduce tool life and cutting quality.
Can I use this end mill on a CNC machines?
Yes. It can be used with CNC milling machines and machining centers. Make sure your collet system, such as ER11 or ER16, is compatible and that the machine has enough rigidity for metal cutting.
Does this end mill require special maintenance?
Basic maintenance is recommended. Clean chips after each use, store the tool in a protective case to avoid edge damage, and avoid dropping it, as carbide is hard but brittle. Proper speed and feed settings also help extend tool life.
How can I reduce tool sticking or breakage?
Use proper spindle speed, moderate feed rate and cutting fluid when needed. Clear chips with air blow or coolant, avoid excessive cutting depth, and reduce vibration or side pressure during machining.
How do I check for edge damage?
Use 10x magnification and bright light to inspect the cutting edges. Look for chips, micro-cracks, rounded edges or uneven wear. If visible damage or dullness appears, replace the tool to maintain cutting quality.

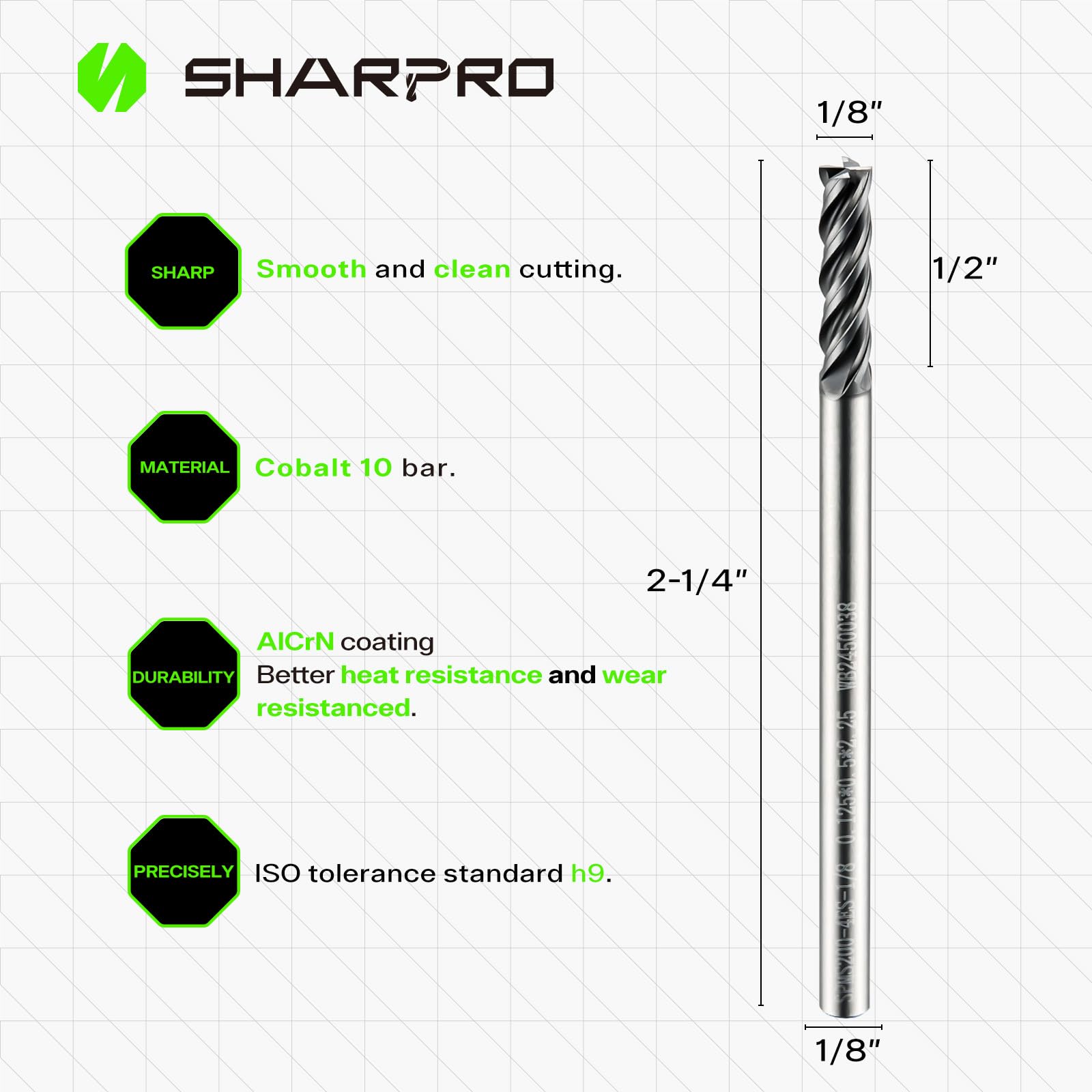

Product details
| Main Specification | |
|---|---|
| Wytwórca | SHARPRO |
| Cutting Diameter | 0.13 Inches |
| Marka | SHARPRO |
| UPC | 769293655501 |
| Liczba pozycji | 5 |
| Cut Type | Up-Cut |
| Cutting Length | 0.5 Inches |
| Kształt | Kwadrat |
| Zawarte komponenty | 5 PCS Up-Cut End Mill |
| Materiał | Tungsten Carbide |
| Typ zakończenia | AlCrN |
| Pozycja Waga | 2.1 ounces |
| Technical Details | |
| Numer części | SHARPRO |
| Rodzaj materiału | Tungsten Carbide |
| Number of Flutes | 4 |
| End Cut Type | Square End |
| Tolerance Held | h9 |
| Number of Cutting Edges | 4 |
| Style | |
| Zakończ typy | AlCrN |
| Others | |
| Typ produktu | Square Nose |
| Rozmiar | 1/8 in(4 Flute) |
