Network Cable Tester, Poe Cable Tester for CAT5e/CAT6/CAT6a, Ethernet Network Tester with NCV, NF-8209 Network Cable Tracker, Test Fault Distance Location and Length Measurement by TDR
8 sold in last 24 hours
- 【Three scan modes】NF-8209 network cable tester supports AC filter mode/ Analog mode/ PoE mode.
- 【PoE testing】The PoE Tester can test the information of standard PoE device, such as POE voltage, power supply polarity, power supply mode and also the type of PSE(af or at standard).
- 【Hub blink】This network cable tester Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
- 【Length measurement】Cable length testing accuracy of rj45 wire tracer can be up to 98% and 200 m.
- 【Cable continuity testing & NCV】Ethernet network tester can test physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).
Estimated shipping
Select a product to estimate shipping.Important information
Safety Information
NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.
Legal Disclaimer
Kind reminds when measuring cable length: 1.The lan cable to be tested must be de-energized. 2. Disconnect the cable at the far end, no remote, no other devices connected! 3. The range must be 2.5m-200m, otherwise, it would be display 0 meter.

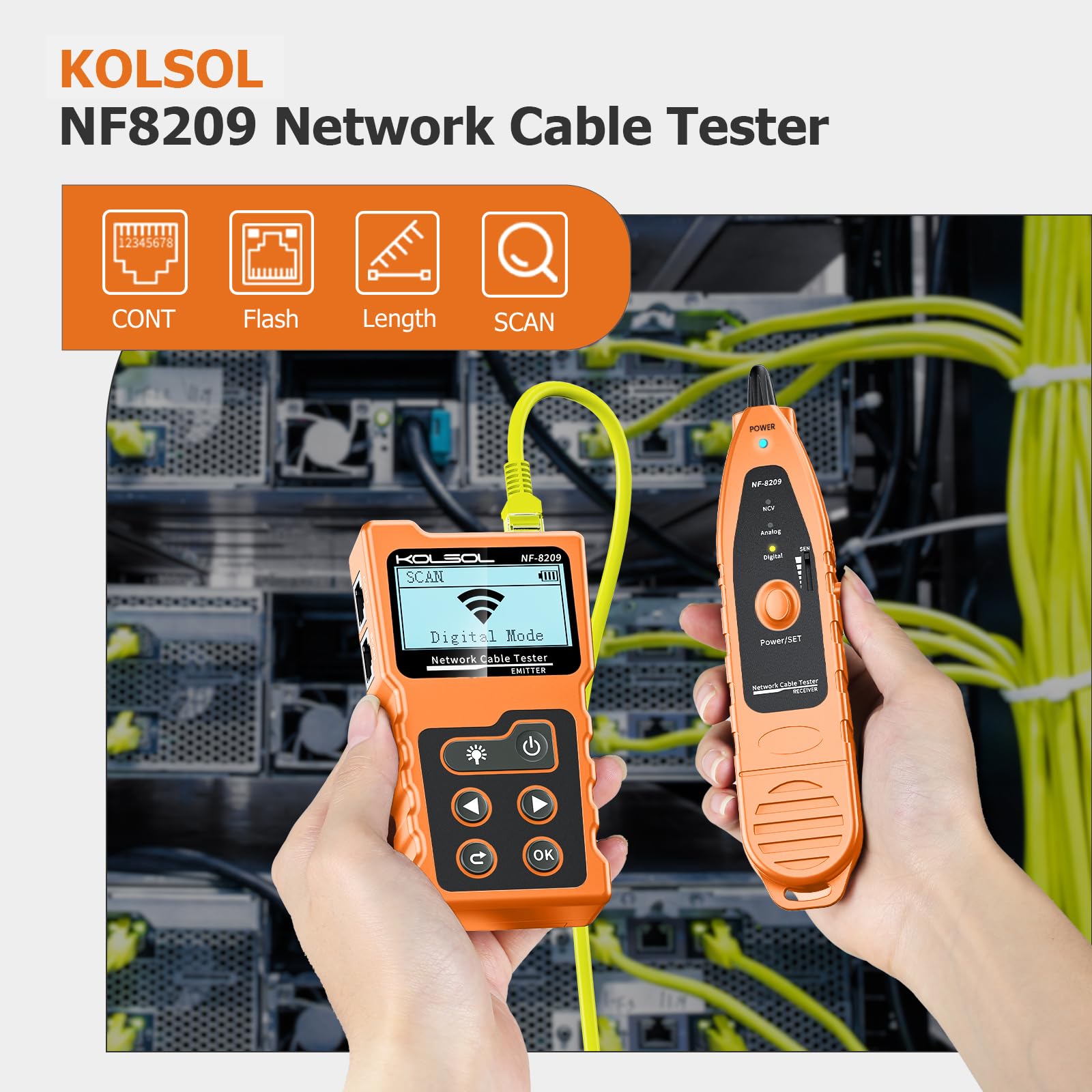

NF-8209 Network Cable Tester
NF-8209 Network Cable Tester has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement,cable faults testing,PoE testing, hub blink and NCV function.
NF-8209 Network Cable Tractor Main Function

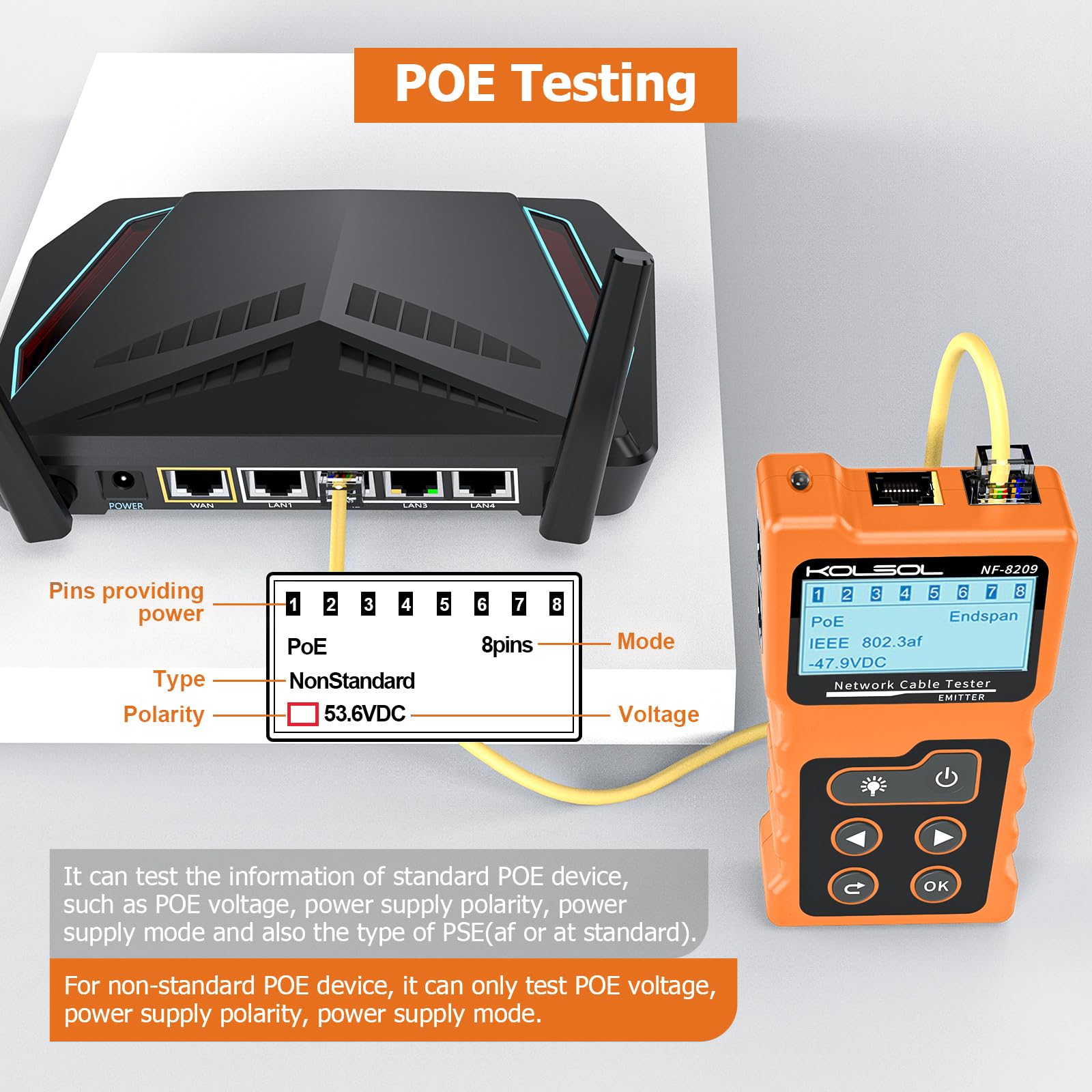

POE Testing
identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard). Test CAT5e, CAT6, CAT6a (STP & UTP)

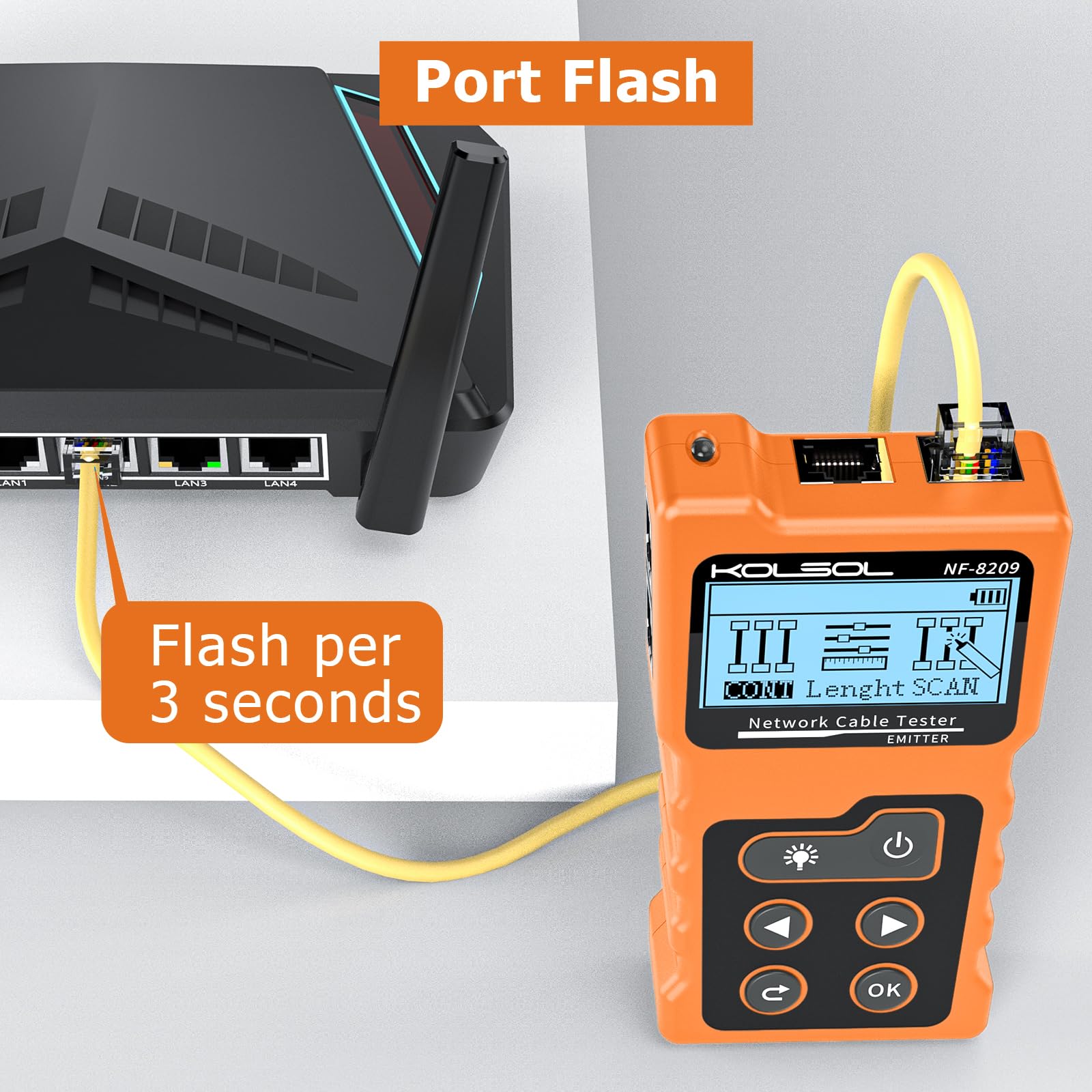

Port Flash
Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/switch.

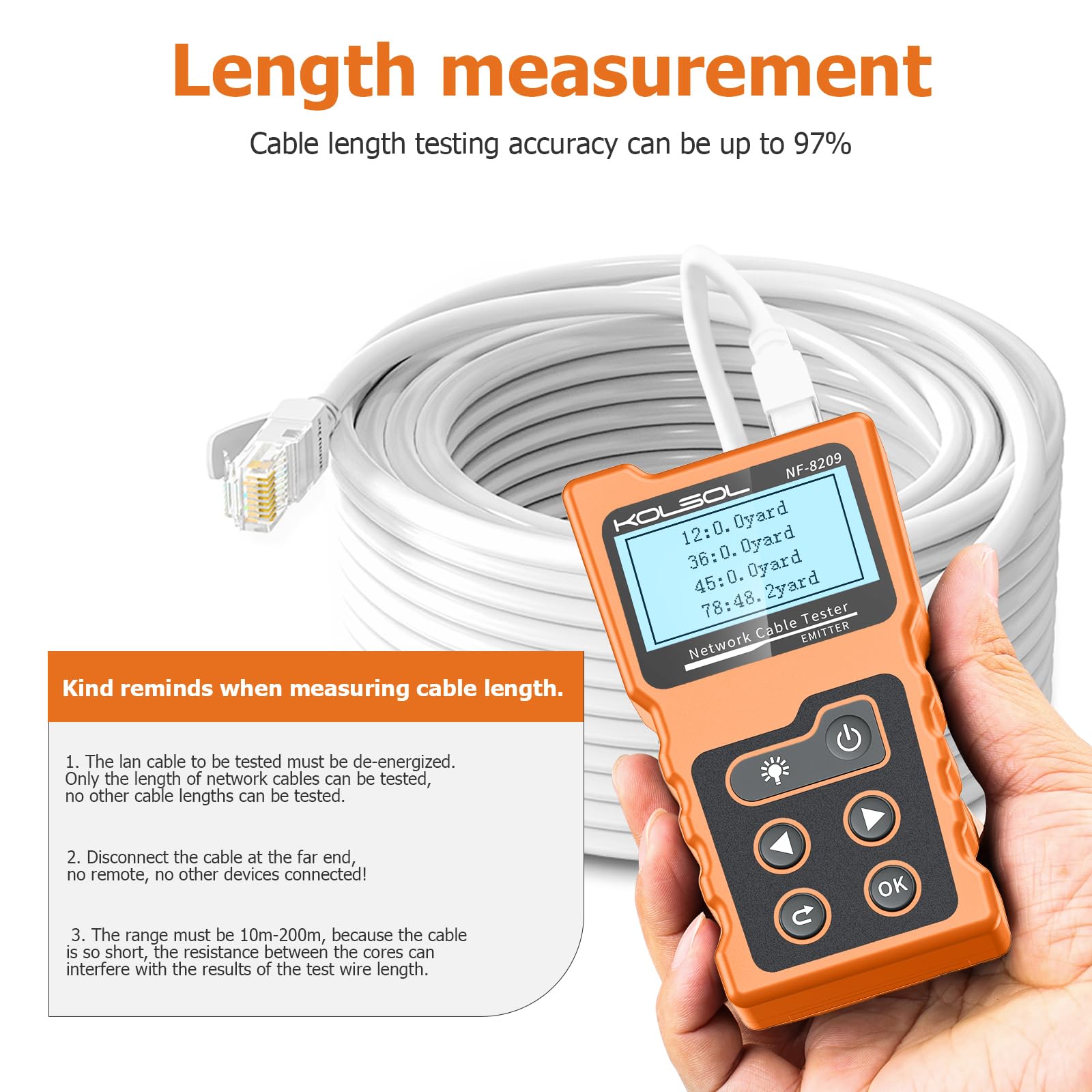

TDR techonology Lenth Measurement
Use TDR techonology for cable length test. Cable length testing accuracy can be up to 97%. Please note testing range must be 10m-200m, otherwise it would display 0 meter.
Continuity Testing
CONT-Test open, short, cross, etc for STP, UTP cable. Detect AC voltage presence (50V-1000V)
Three Cable Scan Mode
Three scan modes selectable: Digital mode/ Analog mode/ PoE mode
Possible results on the line
If the LCD screen display "Cable Open", there are several reasons for this.
NF-8209 POE Tester Highlights
KOLSOL Network Cable Tester NF-8209 Transmitter
KOLSOL Network Cable Tester NF-8209 Receiver
Product details
| Main Specification | |
|---|---|
| Specyfikacja spełniona | CE or Elec 61010- 2- 030 |
| Kompatybilne urządzenia | HUB or Przełączniki or POE switches or RJ45 Network Devices |
| Wytwórca | KOLSOL |
| Marka | KOLSOL |
| UPC | 889327048816 |
| Liczba pozycji | 1 |
| Źródło energii | Bateria zasilana |
| Kolor | Szary |
| Pozycja Waga | 0,52 kg |
| Product information | |
| Liczba opakowań | 1 |
| Technical Details | |
| Typ pomiaru | Długość or Voltage or continuity or Distance |
| Numer części | 8209 |
| Wzór | NF-8209 |
| Style | |
| Nazwa stylu | Testy ciągłości |
| Others | |
| Typ produktu | Network & Cable Testers |
| Minimalne napięcie robocze | 5 volts_of_direct_current |
