3/4" NPT Air Dryer for Compressor,4 Stage Air Compressor Water Separator
3 sold in last 24 hours
- The four-stage air filtration system features two 3/4" NPT ports and one 1/4" NPT pressure gauge port, operating stably within the range of 0-240 PSI, and includes an automatic drain function

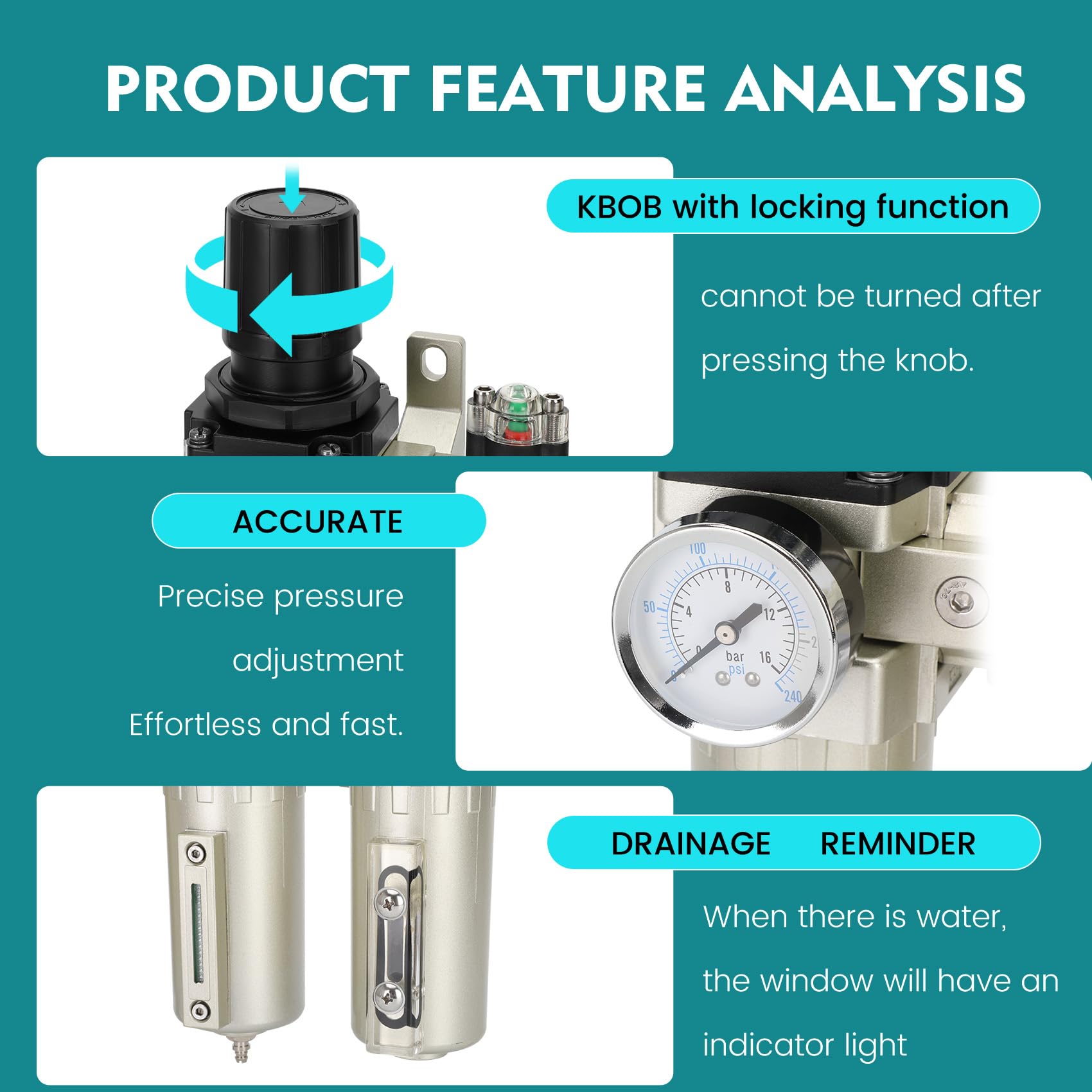

- STAGE 1: Filter and Regulator - The knob has a locking feature to prevent rotation, ensuring accurate and safe use, The filter includes a 5-micron cartridge that effectively filters 95% of particles and moisture

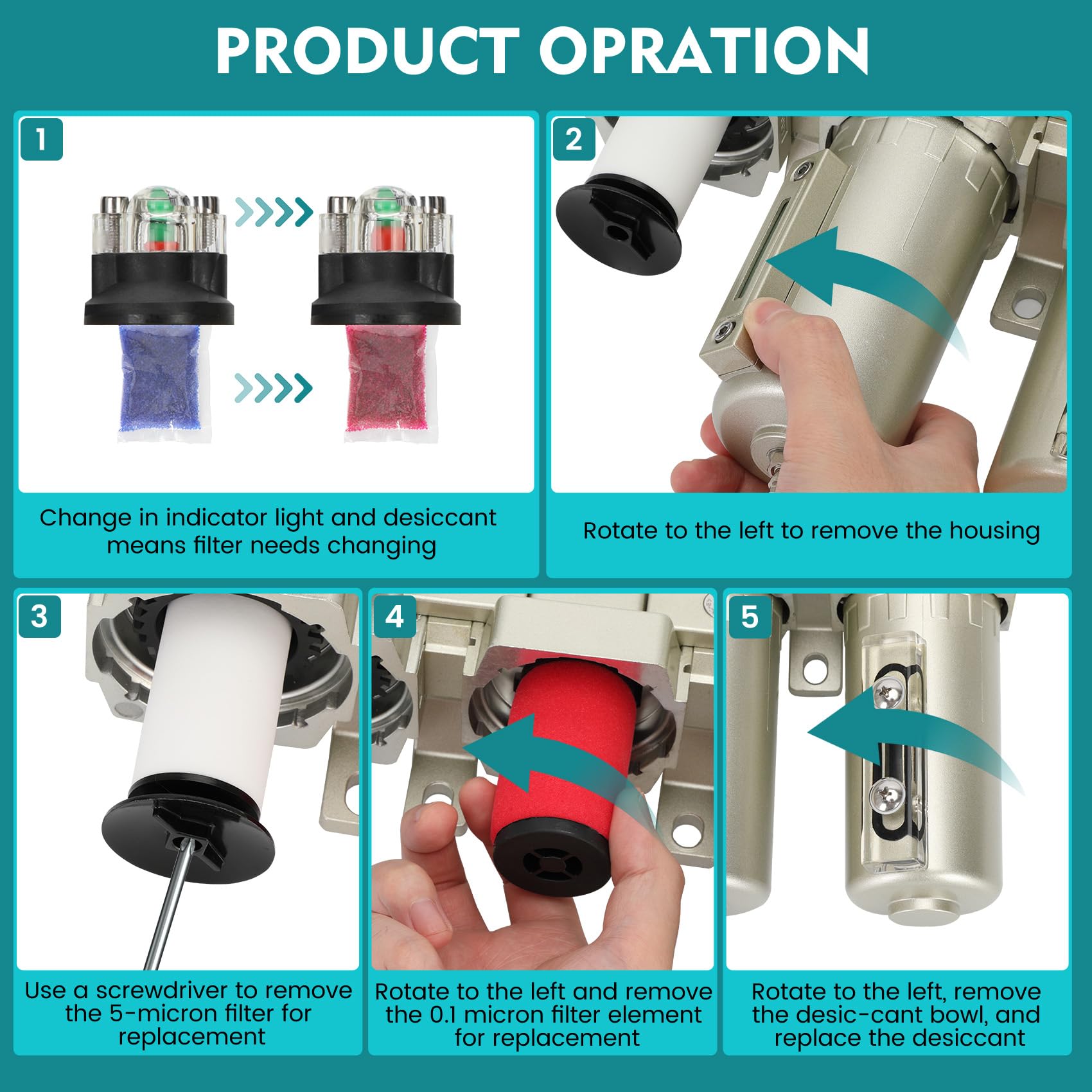

- STAGE 2: The coalescing filter uses a 0.01-micron filter element, which can remove 99.9% of water, oil, and fine particles, These substances are effectively removed after being filtered in the first stage combination, When the red casing pops out, it indicates that the filter element needs to be replaced
- STAGE 3&4: Desiccant Air Dryer Includes a metal bowl filled with desiccant beads to absorb any remaining moisture and impurities from the air, When the desiccant beads change from blue to pink, it indicates that the desiccant needs to be replaced
- ACCESSORIES: 1* four-stage 3/4 Industrial filter (automatic), 8* desiccant, 2* outer filament 3/4NPT, 1* filter cartridge (5 microns), 1* filter cartridge (0.01 micron), 1* 3/4" Male and female connector combinations, 1* PTFE tape
Estimated shipping

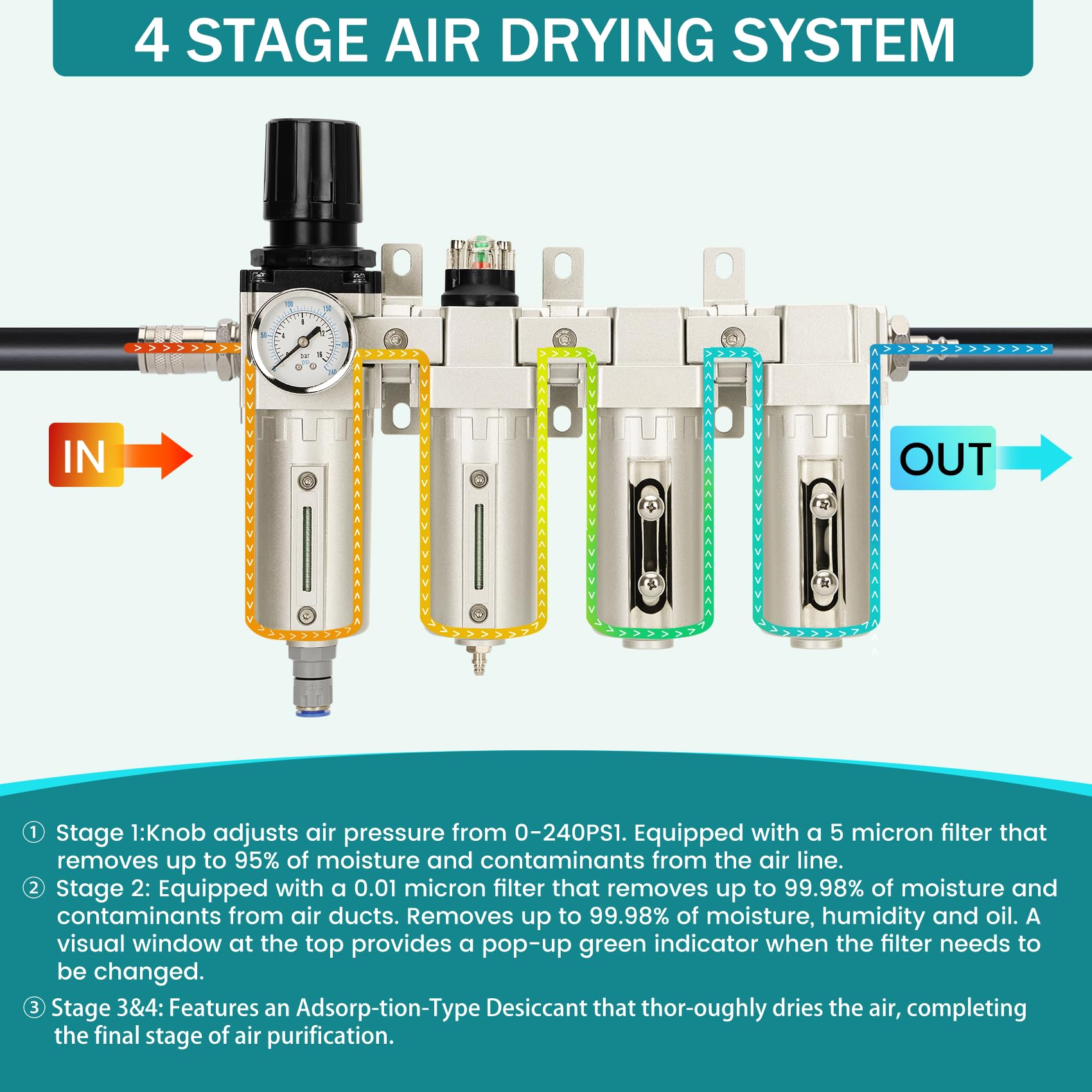

Select a product to estimate shipping.Stage 1 Regulator/Filter: The Adjusting Knob Can Precisely Control The Air Pressure Within The Range Of 0-240 Psi. The Knob Will Be Locked When Pressed To Ensure Safety During Use. Equipped With a 5-Micron Element , It Can Filter Out Up To 95% Of Particles And Moisture In The Air.
Stage 2 Coalescing Filter: The Coalescing Filter Is Equipped With a 0.01-Micron Element That Can Remove 99.98% Of Moisture And Impurities From The Air Line. A Red Indicator On The Top Window Will Pop Out When The Filter Element Needs To Be Replaced.
STAGE 3&4 Desiccant Air Dryer : Desiccant Air Dryer Includes a metal bowl filled with desiccant beads to absorb any remaining moisture and impurities from the air, When the desiccant beads change from blue to pink, it indicates that the desiccant needs to be replaced.
Air inlet size : 3/4 NPT
Material : Aluminium
Pressure Range: 0-240 Psi
Operating Temperature Range : 40-140F(5-60°C)
Tips : The startup working pressure is 30 PSI, and for the initial operation, please maintain it above 30 PSI.
Product details
| Main Specification | |
|---|---|
| Kolor | 3/4"npt or Auto Drain |
| Wytwórca | CAtArt |
| Marka | CAtArt |
| Kształt | 4 Stage-3/4" NPT |
| Zawarte komponenty | 4 Stage Air Drying System |
| Źródło energii | AC |

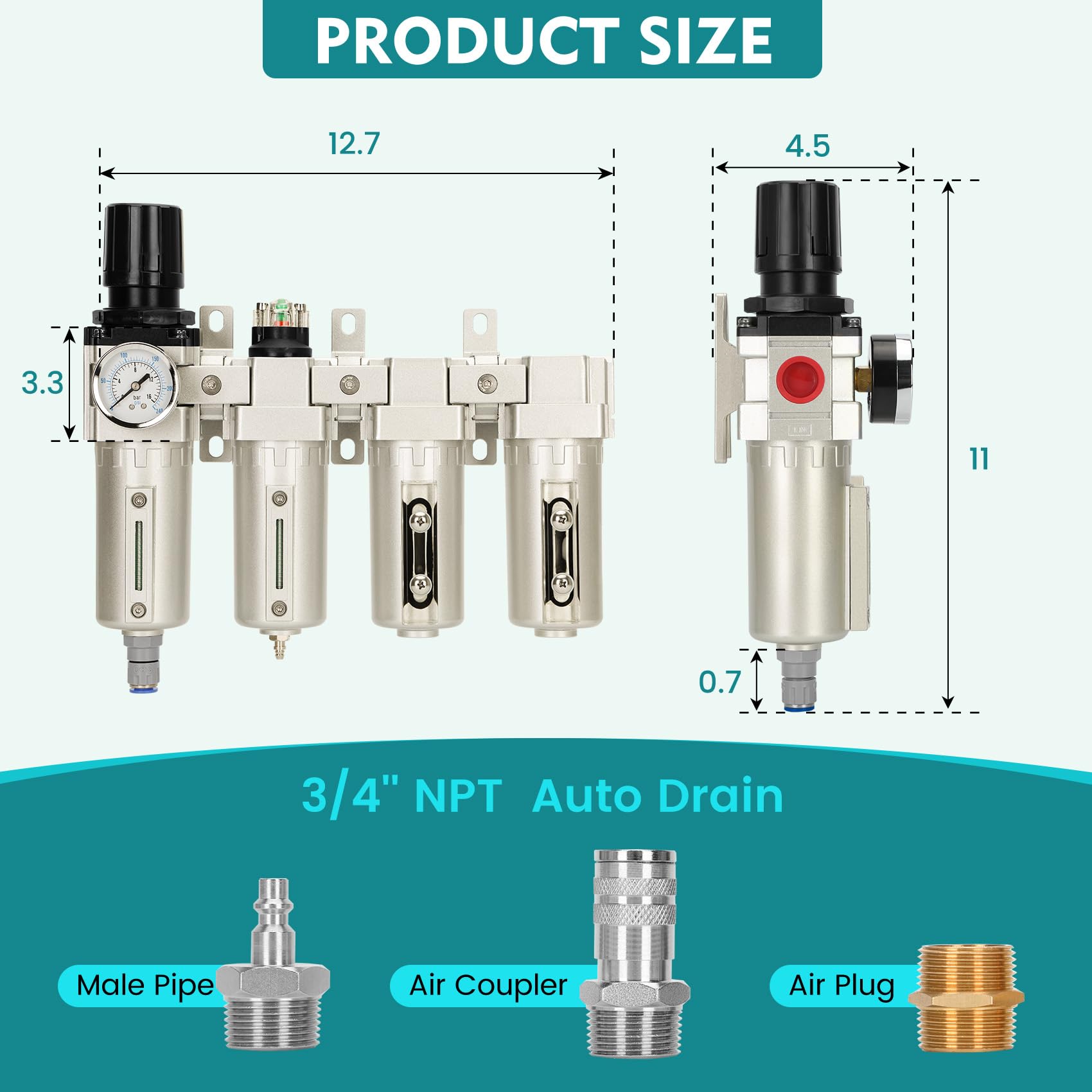

| Wymiary produktu | 12.99 x 4.53 x 10.83 inches |
| Rozmiar | 4 Stage |
| Styl | 4 Stage |
| Pozycja Waga | 10.36 pounds |
| Product information | |
| Numer modelu pozycji | 4 Stage-3/4" NPT |
| Others | |
| Data pierwszego dostępnego | 2025 or April 28 |
| Typ produktu | Air-Compressor Accessories |
